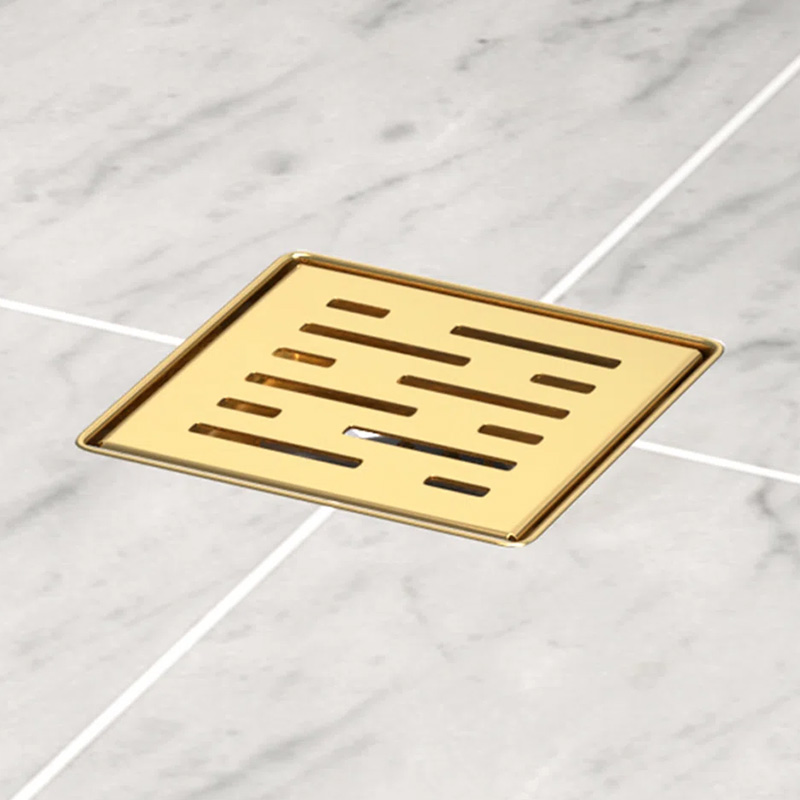

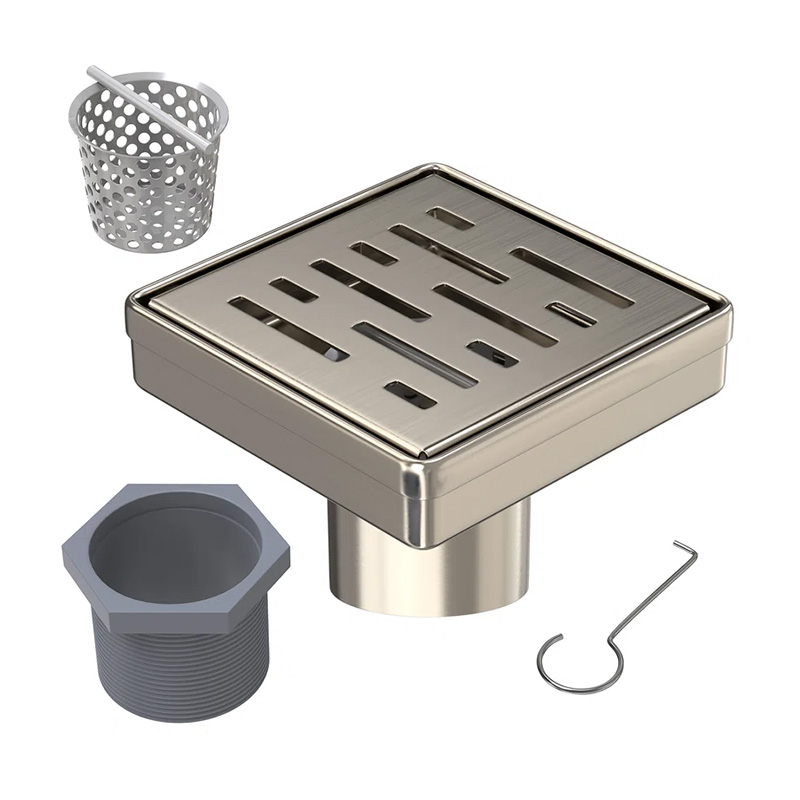

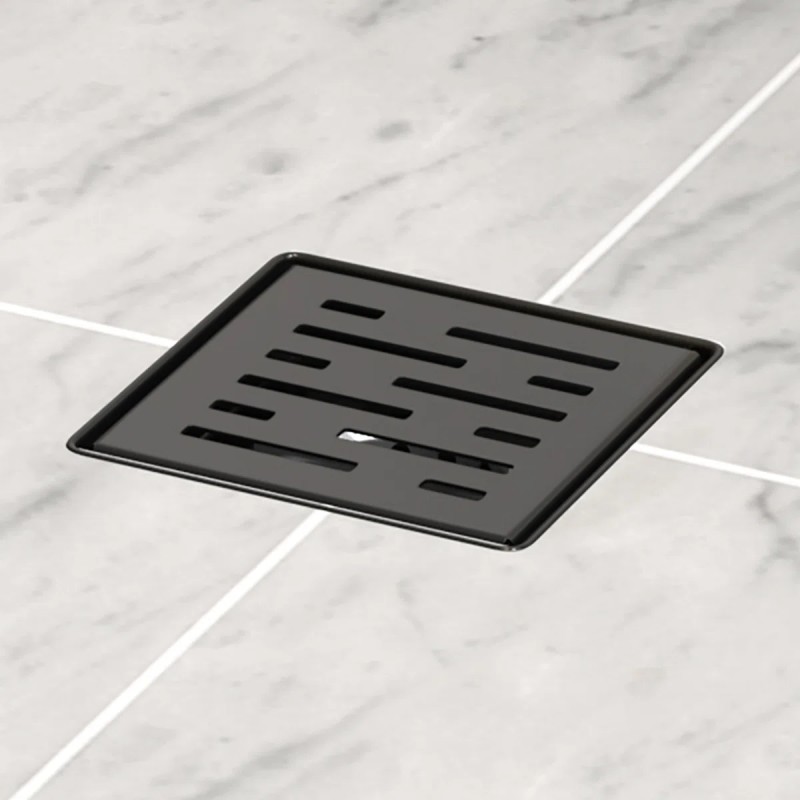

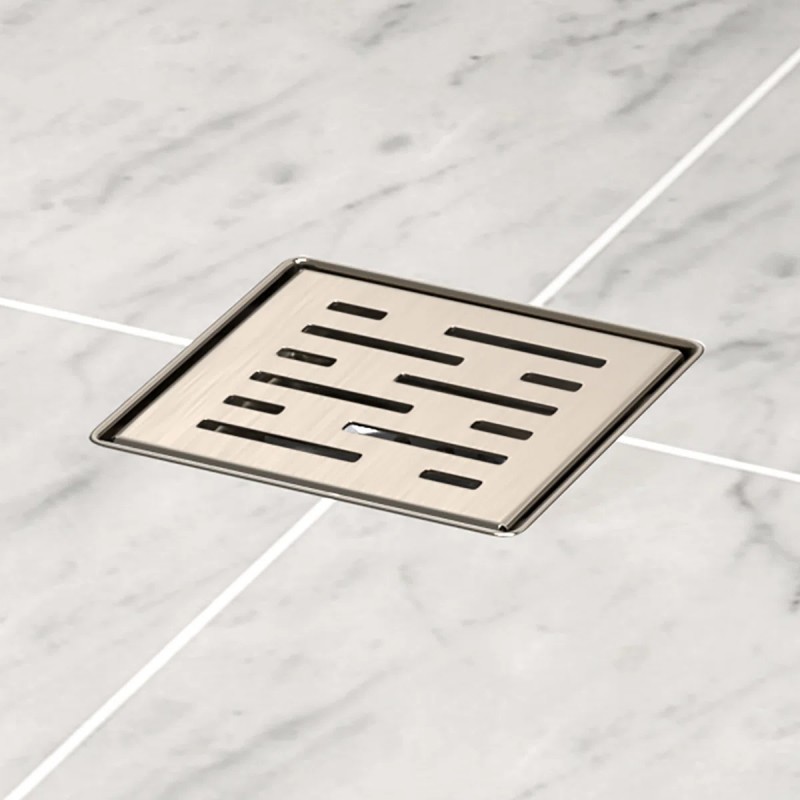

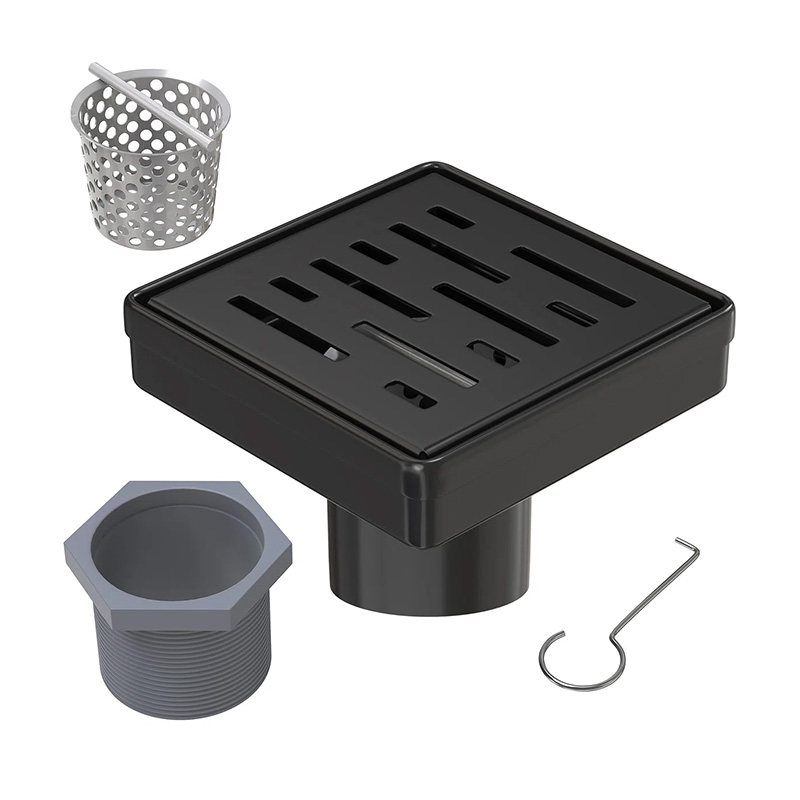

The Square Shower Drain with Tile Insert is a floor drainage component designed for modern shower systems. Its core design features a tile-insert structure that allows the drain opening to blend seamlessly with the surrounding floor tiling, thereby preserving the overall aesthetic continuity of the bathroom space. Typically featuring a standard 4-inch square configuration, the unit consists of a stainless steel drain cover and a main drain body assembly, which connects to the plumbing system via a threaded interface.

The internal design of the drainage system incorporates a removable strainer basket intended to trap hair and fine debris, thereby preventing blockages within the drain pipes. Constructed from metal and treated with specialized surface finishes, the drain maintains stable performance even in humid environments, making it a practical drainage solution for both modern residential and commercial bathroom projects.

1. Corrosion-Resistant Structure

The Square Shower Drain with Tile Insert is manufactured using high-strength stainless steel materials; the faceplate typically features a thickness exceeding 2 mm, and the entire structure undergoes a specialized anti-corrosion treatment. According to salt spray test data, the surface exhibits no visible signs of corrosion after 24 consecutive hours of exposure to a salt spray environment, ensuring that the product maintains stable structural integrity even within persistently humid conditions.

2. High-Efficiency Drainage

The internal drainage channel of this product typically features a diameter ranging from 40 mm to 50 mm. The drainage outlet incorporates a multi-slot structural design, facilitating the rapid flow of water into the drainage piping. Under standard drainage testing conditions, the product demonstrates a drainage capacity typically ranging from 30 to 35 liters per minute, thereby effectively minimizing the time required to clear standing water from the floor surface.

3. Robust Load-Bearing Capacity

The drainage faceplate of the Square Shower Drain with Tile Insert has undergone rigorous structural load-bearing testing. Under conditions of uniformly distributed load, the faceplate is capable of withstanding a pressure of approximately 120 kg without exhibiting significant deformation, thereby guaranteeing structural stability during daily foot traffic.

4. Precision Machining

The drainage faceplate is manufactured using advanced CNC machining processes, ensuring that the dimensional tolerance of the faceplate opening remains within a precise range of ±0.2 mm. This precision machining ensures a stable and seamless fit between the drainage assembly and the floor installation structure, thereby enhancing the overall structural stability of the entire drainage system.

5. Filtration Mechanism

The product is equipped with an internal, removable filtration basket. With a diameter of approximately 70 mm, this basket effectively captures hair and other debris. According to test data, the filtration mechanism is capable of intercepting over 90% of impurities larger than 2 mm in diameter, thereby significantly reducing the risk of drainage pipe blockages.

1. Home Showers

In residential shower spaces, the Square Shower Drain with Tile Insert is typically installed in the shower floor to rapidly drain water generated during showering. Thanks to its robust drainage structure and concealed panel design, the floor drainage system maintains efficient operation while preserving the overall aesthetic cleanliness of the space.

2. Hotel Bathrooms

Hotel guest bathrooms typically require a stable and reliable drainage system. With its sturdy structural design, the Square Shower Drain with Tile Insert ensures consistent drainage performance even under continuous use, thereby minimizing issues related to standing water on the floor.

3. Apartment Bathrooms

In apartment residential projects, floor drainage systems must be compatible with standard plumbing pipes. The Square Shower Drain with Tile Insert features a standard-sized design that allows it to connect seamlessly with common drain pipe interfaces, thereby establishing a stable and secure drainage system.

4. Commercial Restrooms

Restrooms in commercial buildings typically require highly durable drainage fixtures. Featuring a stainless steel drainage structure and robust connection components, the Square Shower Drain with Tile Insert maintains stable performance and reliability throughout years of heavy use.

5. Public Shower Areas

Public shower facilities experience high usage frequency and therefore require a drainage structure capable of withstanding heavy loads. With its large drainage channel and integrated filtration components, the Square Shower Drain with Tile Insert ensures stable and efficient operation even in environments subject to continuous, heavy use.

Q: Is the Square Shower Drain With Tile Insert prone to clogging?

A: The product features a removable filter basket that traps hair and larger particles. The basket traps over 90% of debris larger than 2mm in diameter, reducing the amount of debris entering the drain pipe. Routine maintenance simply involves periodically removing and cleaning the filter basket to maintain unobstructed drainage.

Q: Which drain pipe sizes is the Square Shower Drain With Tile Insert compatible with?

A: The product's drain interface typically uses a standard drain outlet structure with a drain channel diameter ranging from approximately 40mm to 50mm, allowing connection to common drain pipe systems. During installation, simply ensure the drain pipe size matches for a stable connection.

Q: Is the product prone to corrosion in humid environments?

A: The Square Shower Drain With Tile Insert is made of stainless steel and undergoes a surface treatment process. According to salt spray test results, it maintains a stable surface condition even after 24 hours of salt spray testing, making it suitable for long-term humid environments.

Q: Can the drain panel withstand daily foot traffic pressure?

A: The panel of this product has undergone load-bearing structural testing and can withstand approximately 120 kg of pressure under uniform stress without significant deformation. Therefore, it can withstand the pressure of ordinary human footsteps during daily use and maintain a stable structural state.

Q: How much space is required when installing this drainage system?

A: The main structure height of the Square Shower Drain With Tile Insert is typically between 70 mm and 100 mm. During construction, appropriate installation space needs to be reserved based on the ground thickness and the location of the drainage pipes to ensure the drainage system functions properly.

Q: Are you trading company or manufacturer?

A: We are manufacturer, focusing on Bathroom accessories, Floor drain, Shower niche, Electric towel rack, Faucet, Sink, Shower head and Kitchen rack development and sales since 2014. From now on, we have over 10 years of OEM&ODM service experience for TOP sanitary brands.

Q: How to guarantee quality?

A: Our products has passed ISO9001, CE, CUPC, WATERMARK, BASCI, ETL, ROHS, UL. Before mass production, quality sample, production sample, final sample, etc. We have mare than 14 strict QC processes to ensure that product quality meets customer requirements.

Q: Can l buy samples placing orders? Is it free or extra?

A: Yes, you can contact us to get sample. But it is not free, your need to pay sample fee and freight. But the Sample Fee will be refunded upon bulk order.

Q: What is your lead time?

A: It depends on the order quantity and the season of order. Usually we can ship within7-15 days for small quantity, and about 30days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX, ect. ). Please confirm with us before placing orders.

ODO has more than 10 years of service experience for Top Sanitary Brands OEM & ODM, and received high praise from domestic and foreign customers. The products are widely used in

Residential: New Construction, Remodel, Renovations

Hospitality: Resorts, Hotels, Clubhouses, Gyms, Spas Healthcare

Facilities: Hospitals, Showers, Driveways, Balconies, Commercial Kitchens, Storm Drainage Universities, Office Buildings, Industrial

ODO has scale advantages, resource advantages, integration advantages, technology research and development advantages, and has a perfect pre-sale, sale, after-sales service system. With the production and development of high-end wide bathroom hardware products as the orientation, continuous innovation, seeking transformation, willing to provide global customers with bathroom pendants, floor drains, electric towel racks, niches, faucets, sinks, shower, bathroom mirrors and other bathroom hardware products.

We usually use neutral packing. And can be packaged customized packaging, change packaging materials, and install protective panels, wooden frames or pallets. The product packaging has passed EPR certification in Germany and France. Whether you need cut packaging, certified materials or general packaging advice, our team of experts is here to help.
