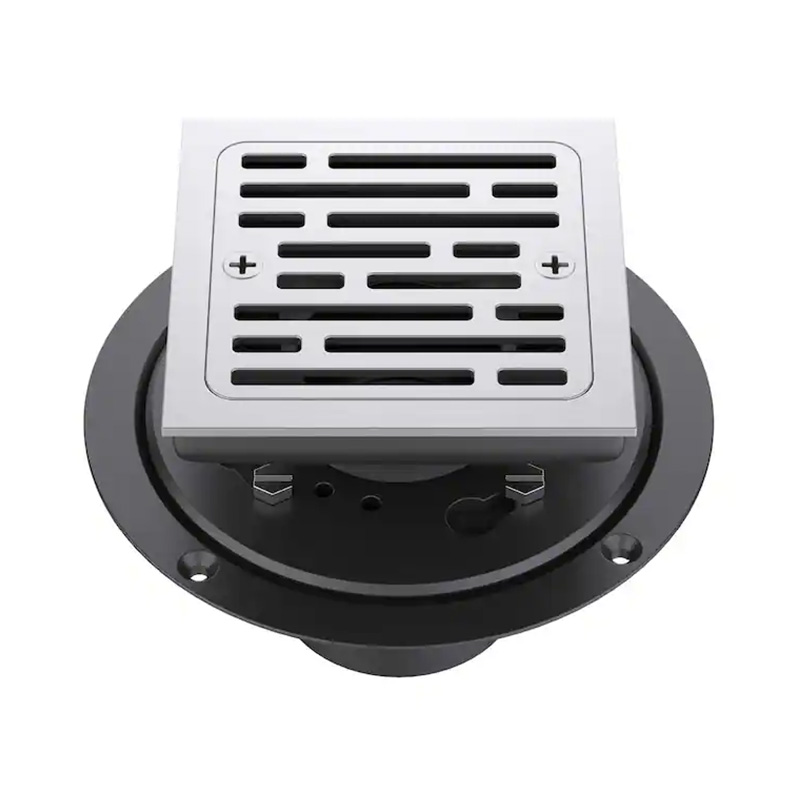

The Tile Insert Floor Grate is a floor drainage component that utilizes an embedded tile-laying structure.  Its core design integrates the floor tile and the drainage grate, allowing the drain to perform its function while maintaining the visual continuity and integrity of the floor surface. Based on a 4.5-inch specification, the top grate is available with chrome, brushed gold, or brushed surface finishes to match various tile systems. The overall structure consists of a SUS304 metal cover and a high-strength base, making it suitable for floor systems requiring high drainage performance and aesthetic consistency.

1. Efficient Drainage

The Tile Insert Floor Grate features multiple linear openings, with the effective water flow area of a single drainage surface exceeding 35%. Under standard water pressure, it can achieve a drainage capacity of approximately 30–35 liters per minute. Combined with a direct-flow outlet design, water flow resistance is significantly reduced, effectively minimizing water accumulation and improving overall drainage efficiency while keeping the floor dry.

2. Stable Structure

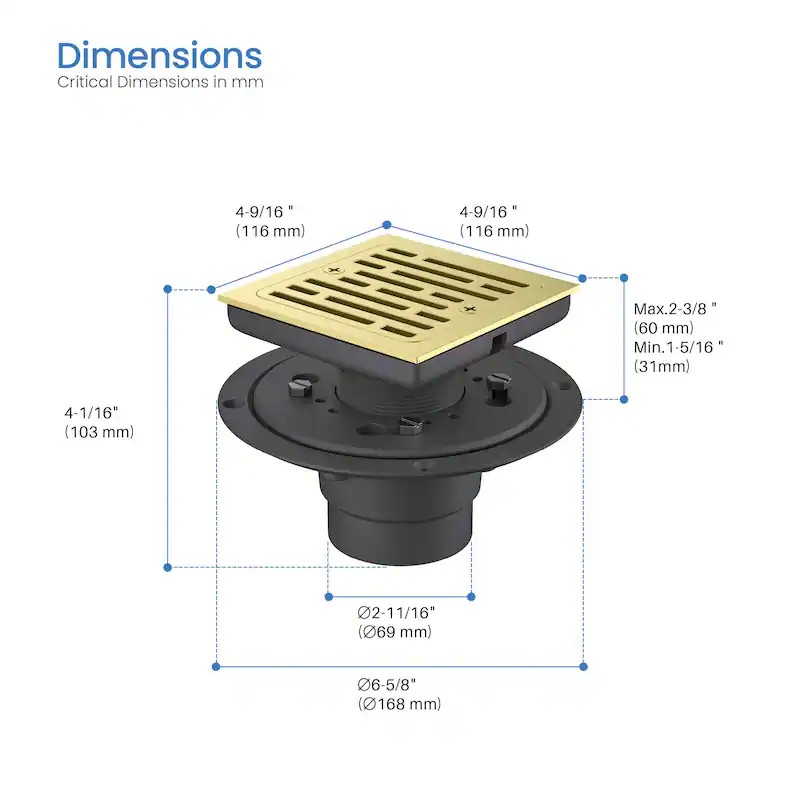

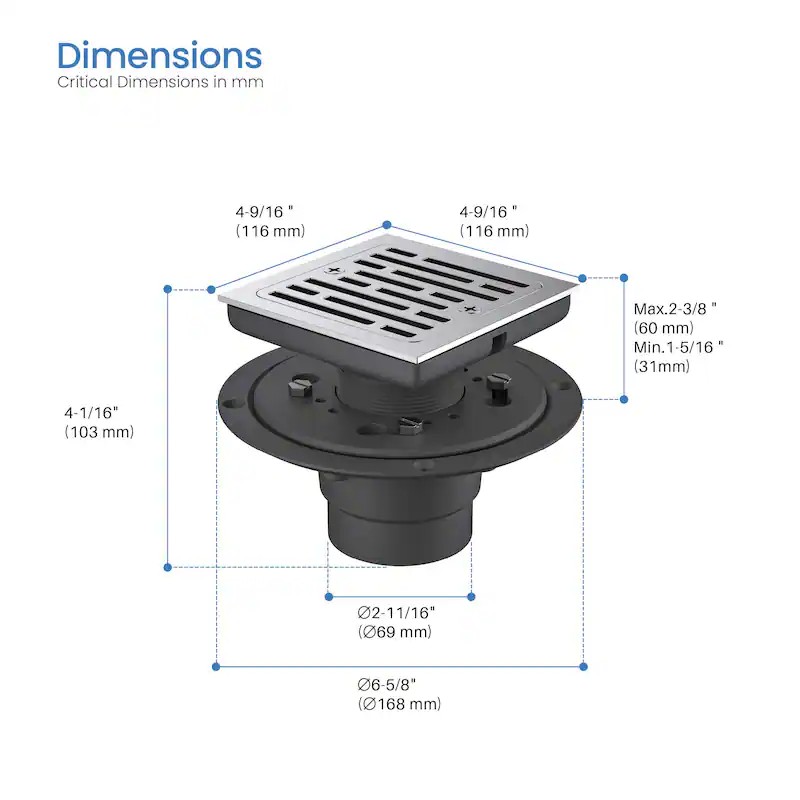

The product features a widened flange structure at the bottom, with an outer diameter of approximately 168mm, which evenly distributes the load on the ground and reduces the risk of stress concentration at the connection points caused by long-term use. Combined with a threaded outlet connection, the overall resistance to displacement is significantly improved after installation, maintaining structural stability even under repeated temperature changes.

3. Corrosion-Resistant Materials

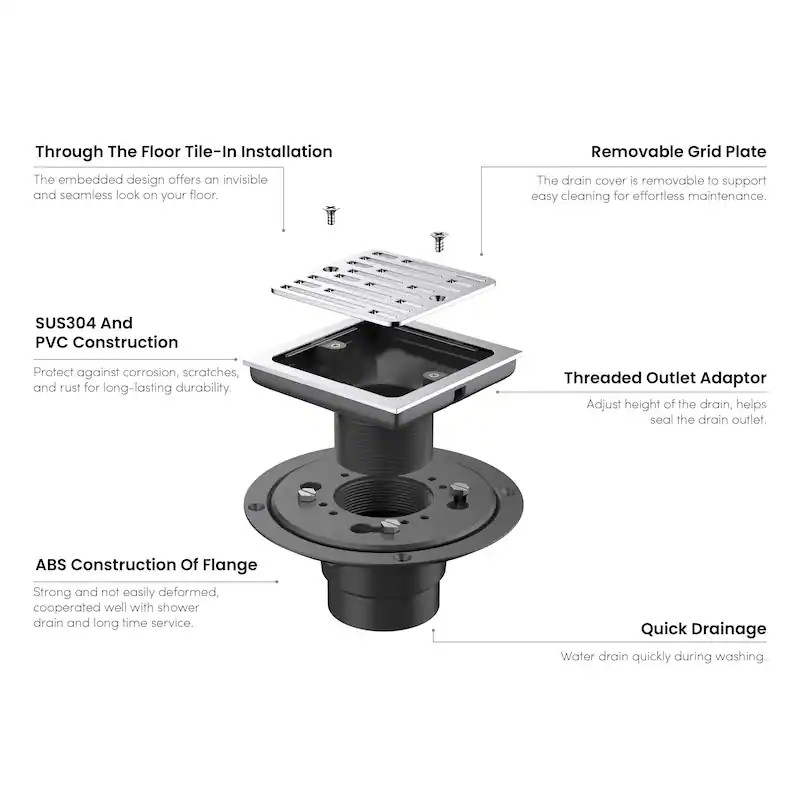

The cover is made of SUS304 stainless steel, meeting the corrosion resistance requirements for use in typical humid environments and maintaining long-term surface stability under neutral cleaning conditions. The base uses an engineering-grade plastic structure, which has good resistance to limescale and cleaning agents. The overall combination extends the product's lifespan and reduces maintenance frequency.

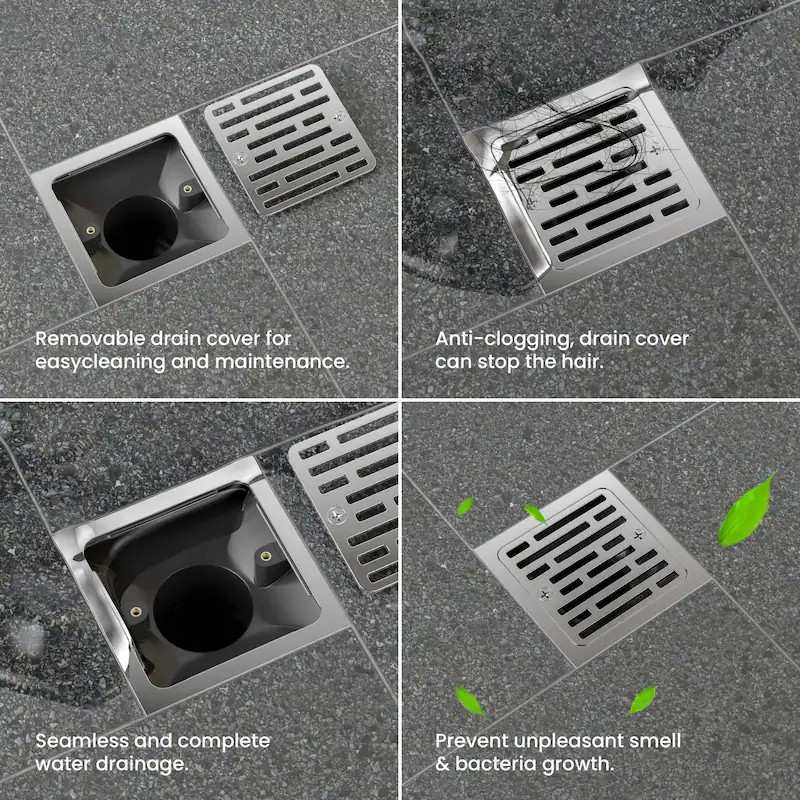

4. Anti-Clogging Design

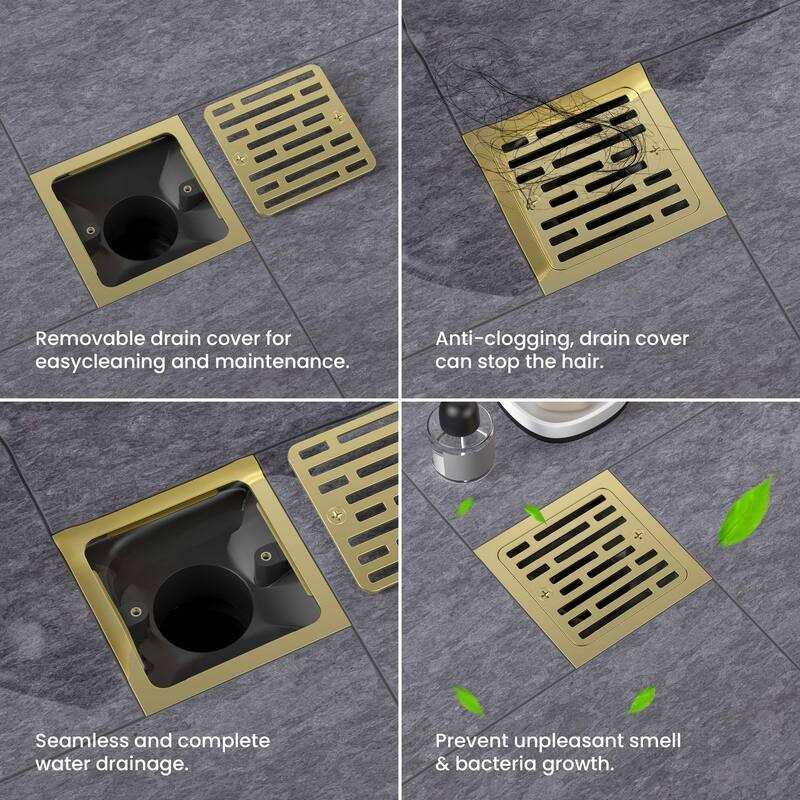

The width of the grate openings is controlled to effectively prevent hair and larger particles from entering the pipe while ensuring drainage speed. With a removable grate structure, debris can be easily cleaned from the surface, reducing the probability of internal pipe blockage and minimizing the risk of reduced drainage efficiency due to foreign object accumulation.

5. Easy Maintenance

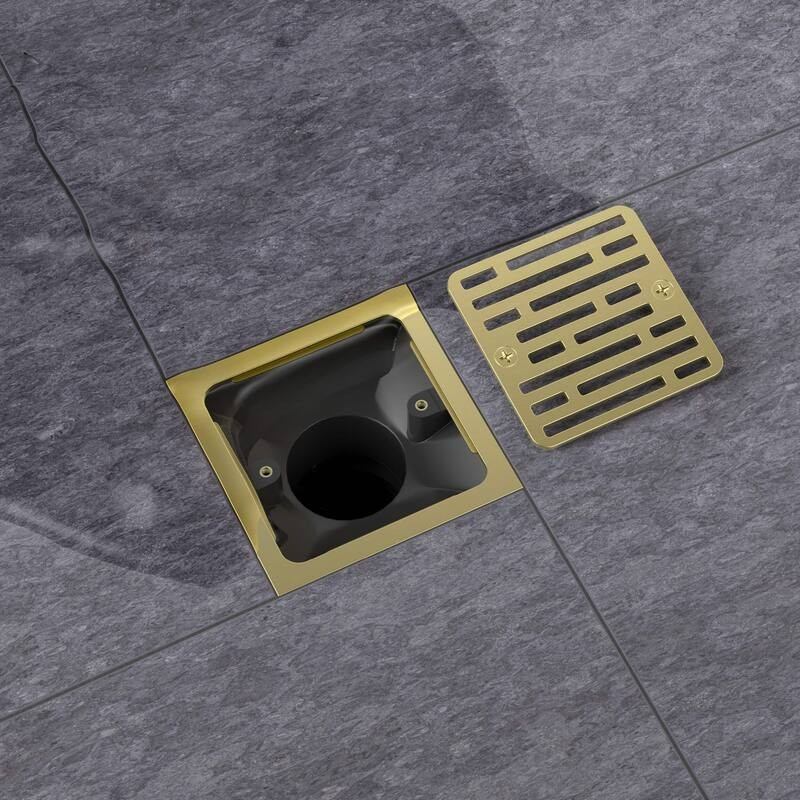

The Tile Insert Floor Grate's top grate is installed with fixing screws and can be removed for maintenance without damaging the floor tiles. Overall maintenance requires no specialized tools, and a single cleaning can be completed within minutes, making it suitable for floor systems requiring frequent drainage checks.

1. Bathroom Flooring

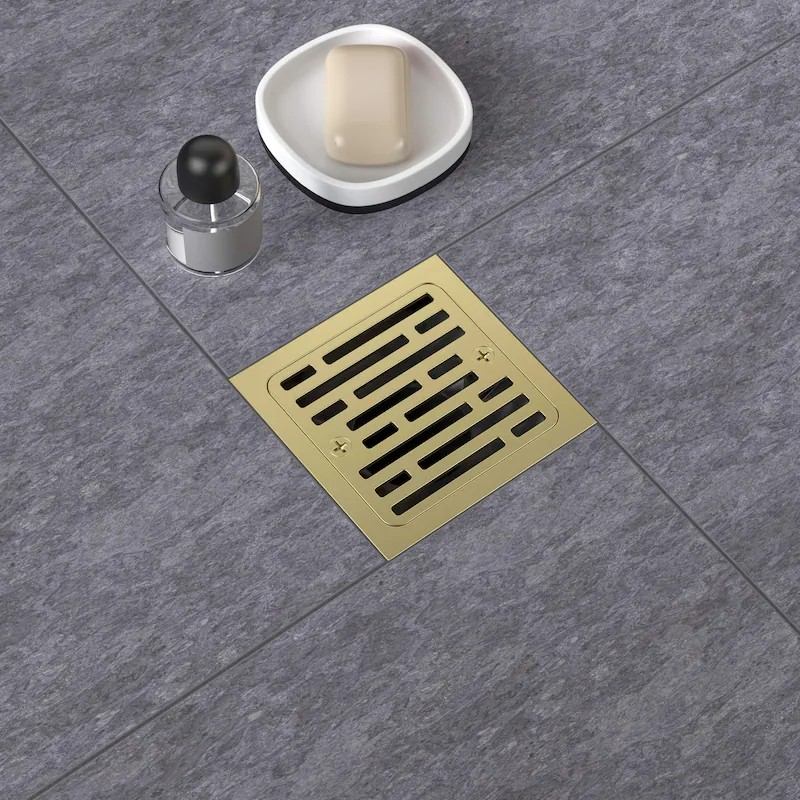

In residential or commercial bathrooms, the Tile Insert Floor Grate allows for seamless integration of floor tiles and the drain, reducing the visual disruption caused by traditional floor drains. Its drainage capacity meets the instantaneous water volume requirements of shower areas, preventing water accumulation and maintaining overall floor cleanliness.

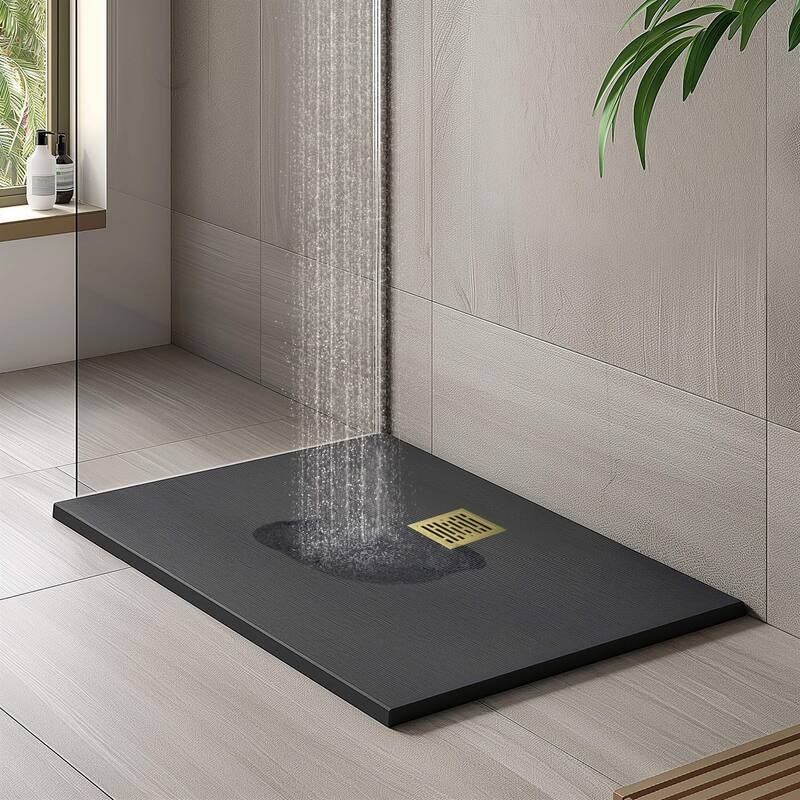

2. Shower Space

In independent shower areas, this product provides stable drainage within a small installation space and is compatible with various tile thicknesses and installation methods. The adjustable drain height ensures a proper slope, preventing water stagnation due to installation errors.

3. Commercial Shower Areas

Commercial shower areas typically have high water usage and concentrated drainage volumes. The Tile Insert Floor Grate's rapid drainage structure reduces the time water remains on the floor. Its corrosion-resistant material maintains structural stability in high-humidity environments, making it suitable for continuous use in commercial settings.

4. Hotel Guest Rooms

Hotel guest rooms require high stability and easy maintenance for drainage components. This product supports quick disassembly for inspection, reducing maintenance time. The embedded design helps unify the floor style, meeting the overall design consistency requirements of guest rooms.

5. Public Changing Areas

In high-traffic areas such as changing rooms, the Tile Insert Floor Grate's anti-clogging structure reduces pipe maintenance requirements. Its load-bearing capacity and structural stability are suitable for crowded environments, reducing the risk of slippery floors caused by poor drainage.

1. Regular Cleaning

It is recommended to clean the grate surface every 1-2 weeks, depending on usage frequency, to remove accumulated hair and debris and prevent them from affecting drainage speed. Cleaning only requires removing the grate and will not affect the overall structure.

2. Gentle Cleaning

For daily cleaning, use a neutral detergent with water. Avoid direct contact of strong acids or alkalis with the metal surface. Proper cleaning helps maintain the stability of the surface treatment layer and extends the lifespan of the Tile Insert Floor Grate's appearance.

3. Check Fastenings

During long-term use, regularly check the tightness of the fixing screws to ensure a stable connection between the grate and the base. If loosening is found, adjust it promptly to prevent structural displacement from affecting drainage efficiency or causing abnormal noise.

4. Prevent Hard Object Impact

During floor cleaning or maintenance, avoid direct impact of hard objects on the grate surface to prevent surface deformation or damage to the fixing structure. Maintaining good usage habits helps maintain the overall flatness and tightness of the product.

5. Maintain the Drainage Interface

The drainage interface should be regularly checked for debris accumulation or aging of the sealant.  Simple cleaning or replacement of sealing components should be performed as needed. A well-maintained interface effectively prevents odor backflow and ensures the normal operation of the floor drainage system.
