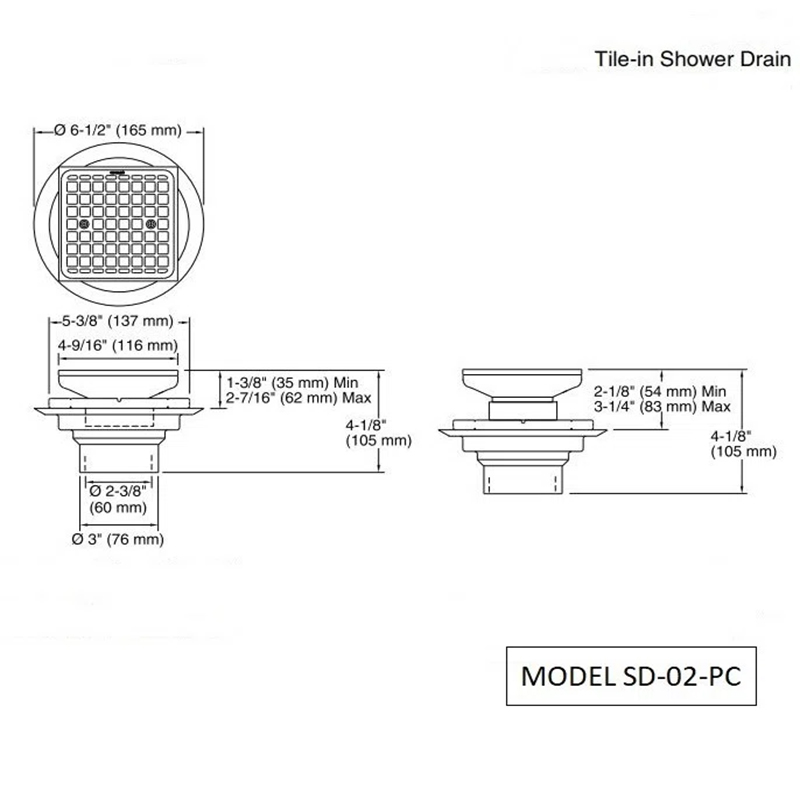

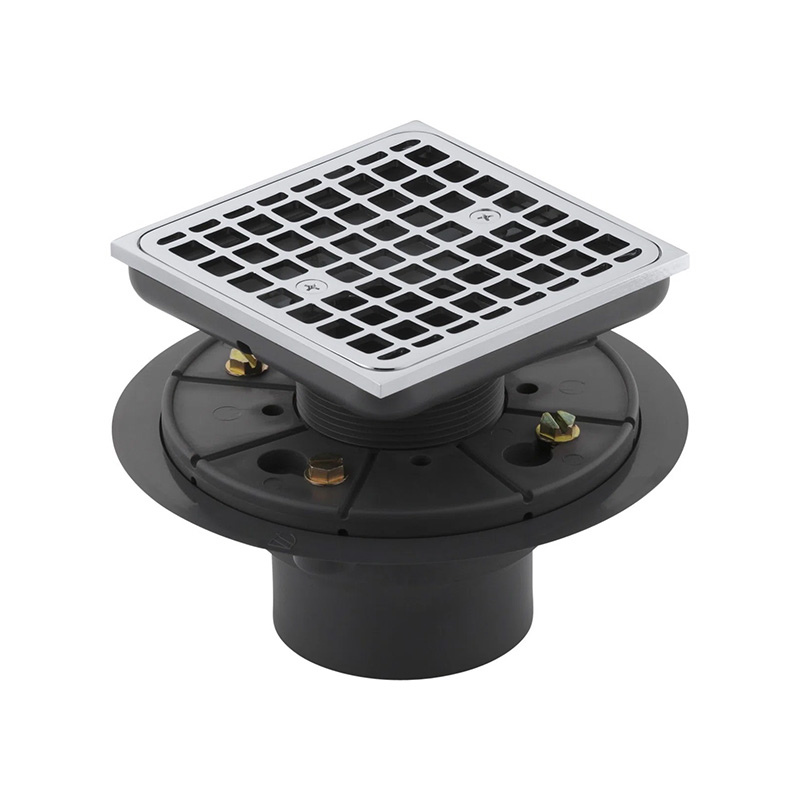

Tile Insert Grate Drain is a drainage device for shower or wet areas, featuring an embedded grille structure that unifies drainage with aesthetics. Typically installed at the drain outlet, it uses a square grille design on top with internal drain pipes, allowing water to quickly collect and drain. The Tile Insert Grate Drain utilizes a large grille area and adjustable installation structure, improving drainage efficiency and adaptability. With an overall diameter of approximately 165 mm and a drain connection of approximately 76 mm, it is compatible with standard drain pipe connections and is a common drainage solution in modern bathroom spaces.

1. High-Efficiency Drainage

The Tile Insert Grate Drain features a large-area grille structure with an effective opening rate of approximately 45% to 55%. Under standard shower drainage test conditions, the drainage flow rate can reach 30 to 36 liters per minute, effectively reducing water accumulation on the floor and improving overall drainage efficiency.

2. Stable Structure

The main drainage unit adopts a high-strength drainage structure design, with a drain outlet diameter of approximately 76 mm and a threaded locking connection. According to structural stability tests, the drainage component can withstand approximately 80 kg of vertical pressure without deformation.

3. Corrosion-Resistant Material

The Tile Insert Grate Drain's surface is made of corrosion-resistant metal material and undergoes a surface treatment process. It shows no significant corrosion after more than 24 hours in a salt spray test environment and maintains stable structural performance in humid environments.

4. Adjustable Installation

The product design allows for installation adjustment, with the installation height adjustable from approximately 35 mm to 83 mm, allowing the drain outlet to adapt to different floor thicknesses. The adjustable installation structure increases construction flexibility.

5. Secure Connection

The bottom connection pipe of the drainage assembly has a diameter of approximately 76 mm, accommodating common drainage pipe sizes. The connection structure uses a threaded locking design to create a stable connection point, maintaining stable sealing performance during drainage system pressure testing.

1. Shower Area

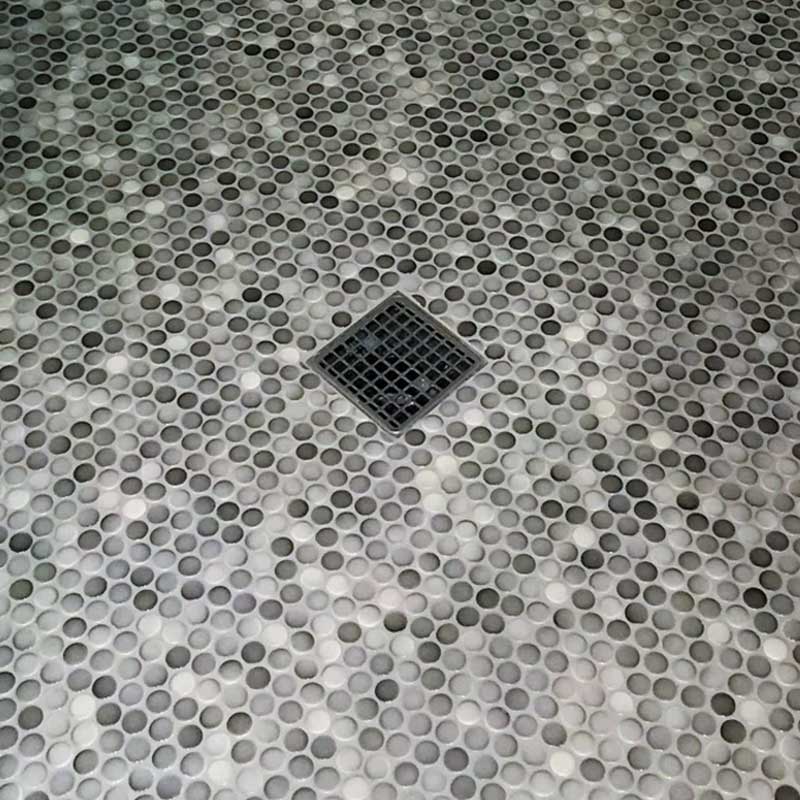

Installing a Tile Insert Grate Drain on the shower floor creates a centralized drainage area, allowing shower water to quickly enter the drain pipes. The large-area grille design improves drainage efficiency and reduces water retention time on the floor.

2. Hotel Bathrooms

Hotel guest room bathrooms typically require a stable drainage system. The Tile Insert Grate Drain, with its structurally stable drainage components and large-size grille design, ensures stable performance of the drainage system even in high-frequency use environments.

3. Apartment Bathrooms

Apartment bathrooms typically use standard drainage structures. The Tile Insert Grate Drain can connect to common drainage pipe systems, making floor drainage smoother and improving overall drainage efficiency.

4. Gym Showers

In gym communal shower areas, the drainage system needs to withstand high water usage. The Tile Insert Grate Drain, with its large drainage opening area, allows water to drain quickly, reducing floor water accumulation.

5. Commercial Spaces

Commercial building bathroom areas typically have high requirements for drainage stability. The Tile Insert Grate Drain has a stable structure and can maintain stable drainage performance in continuous use environments.

Q: What is the drainage capacity of the Tile Insert Grate Drain?

A: Under standard drainage test conditions, this product typically achieves a drainage flow rate of approximately 30 to 36 liters per minute. Actual drainage capacity also depends on the drain pipe specifications and installation angle, but overall drainage efficiency is sufficient for most shower areas.

Q: What drain pipe sizes does this product fit?

A: The Tile Insert Grate Drain's bottom drain interface has a diameter of approximately 76 mm, allowing connection to common standard drain pipe structures. During installation, simply ensure the drain pipe interface size matches to complete the connection.

Q: Is the drain grate prone to clogging?

A: The grate's opening ratio is approximately 45% to 55%, effectively allowing water flow and reducing debris accumulation. Regular surface cleaning is sufficient to maintain smooth drainage.

Q: Is sufficient height space required for installation?

A: The installation height of this product is typically adjustable from approximately 35 mm to 83 mm. Appropriate installation space needs to be provided based on the floor thickness during construction to ensure the drainage structure functions properly.

Q: Is Tile Insert Grate Drain suitable for use in humid environments?

A: The product is made of corrosion-resistant metal materials and undergoes a surface treatment process. It maintains stable structure and drainage performance even when used in humid environments.

Q: Are you trading company or manufacturer?

A: We are manufacturer, focusing on Bathroom accessories, Floor drain, Shower niche, Electric towel rack, Faucet, Sink, Shower head and Kitchen rack development and sales since 2014. From now on, we have over 10 years of OEM&ODM service experience for TOP sanitary brands.

Q: How to guarantee quality?

A: Our products has passed ISO9001, CE, CUPC, WATERMARK, BASCI, ETL, ROHS, UL. Before mass production, quality sample, production sample, final sample, etc. We have mare than 14 strict QC processes to ensure that product quality meets customer requirements.

Q: Can l buy samples placing orders? Is it free or extra?

A: Yes, you can contact us to get sample. But it is not free, your need to pay sample fee and freight. But the Sample Fee will be refunded upon bulk order.

Q: What is your lead time?

A: It depends on the order quantity and the season of order. Usually we can ship within7-15 days for small quantity, and about 30days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX, ect. ). Please confirm with us before placing orders.
