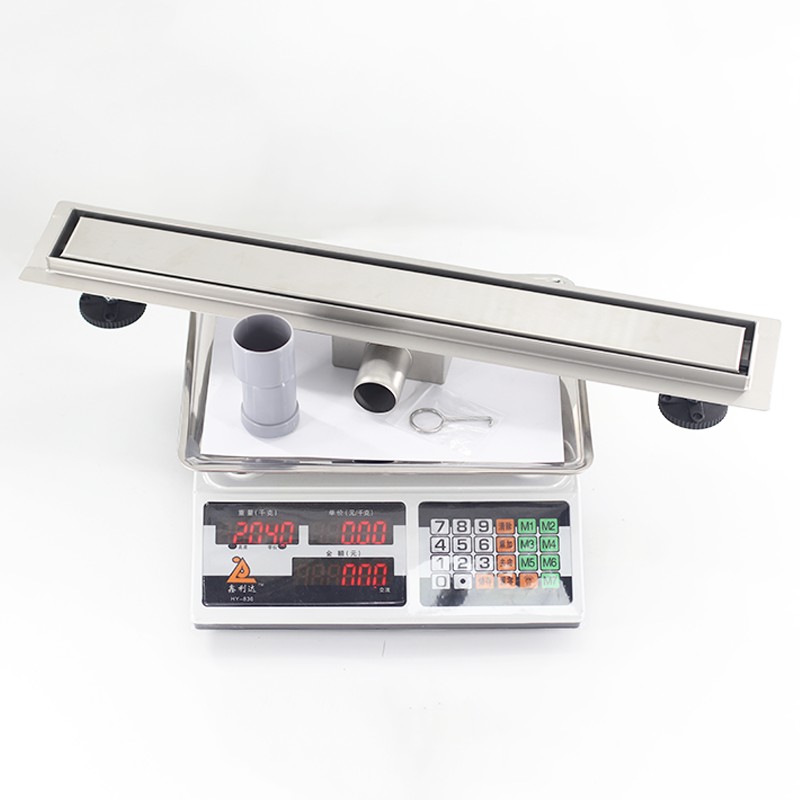

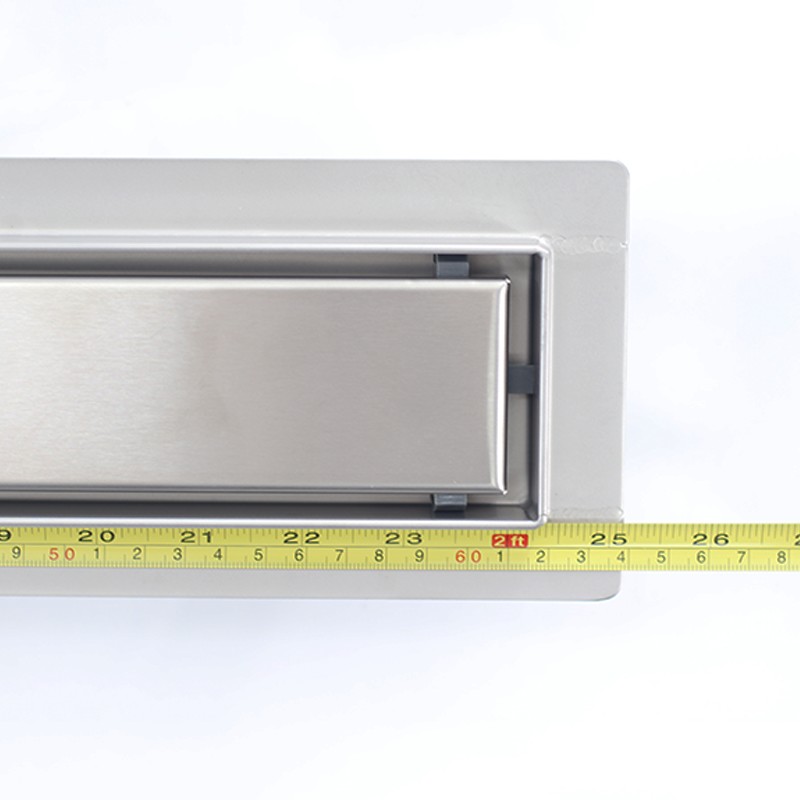

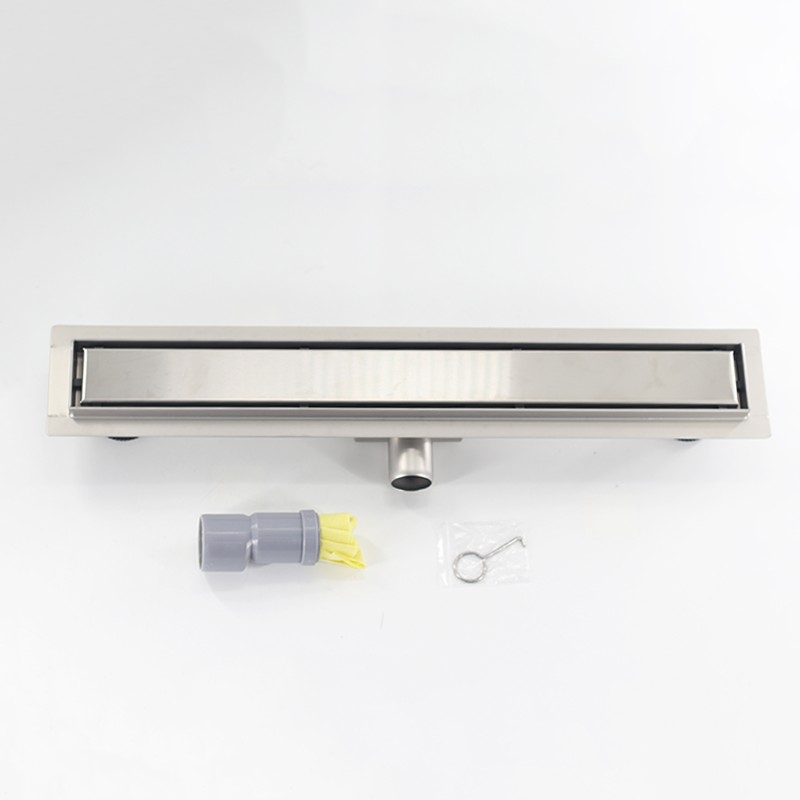

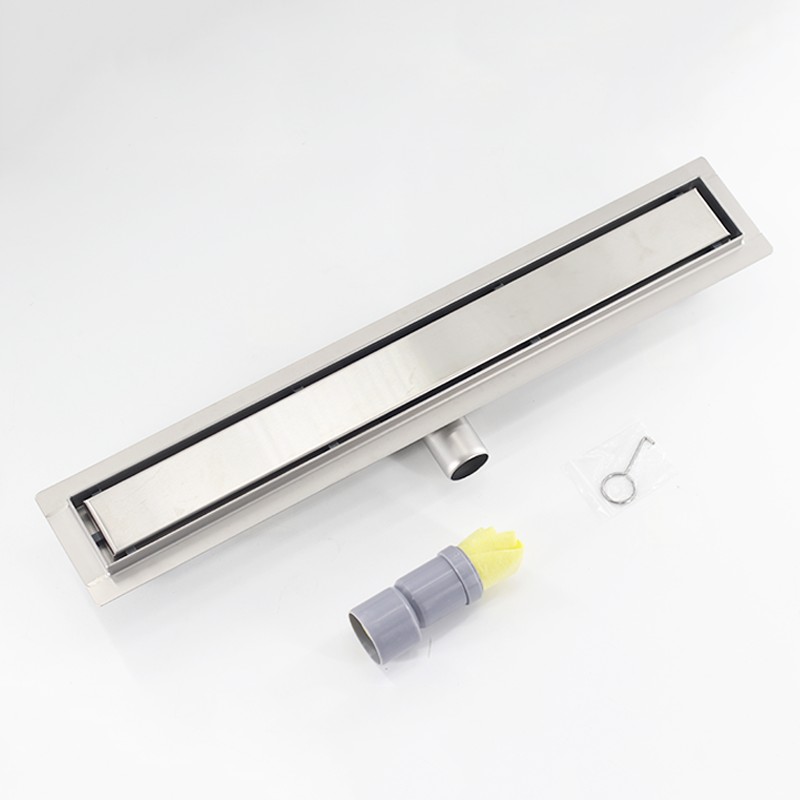

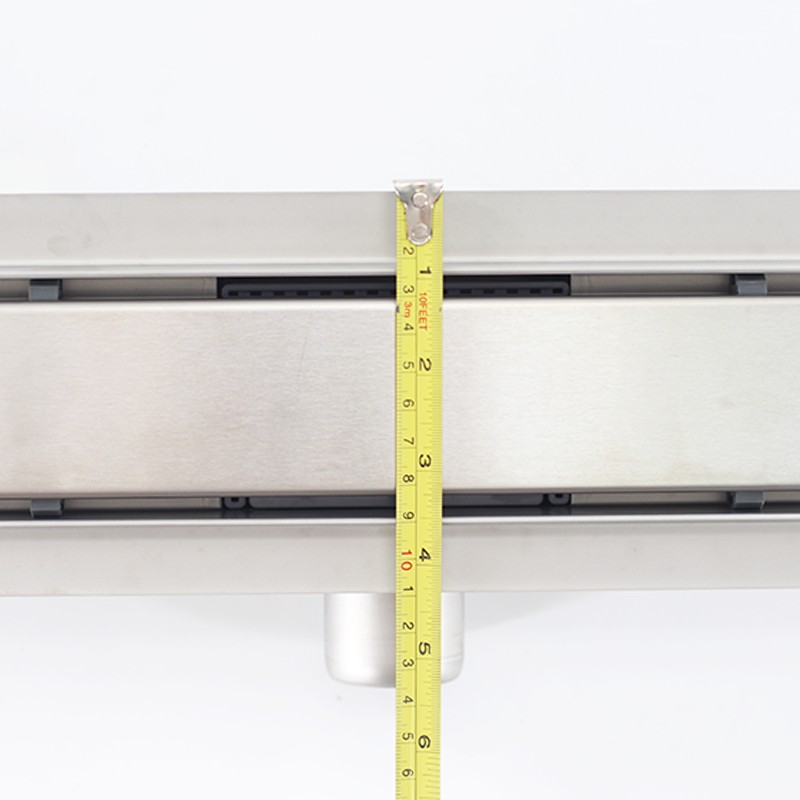

The Tile Insert Channel Drain is a linear floor drain with a tile-mounted panel that, once installed, is nearly flush with the floor tile, leaving only a narrow drainage slit around the perimeter. When used in the shower area or other areas where drainage is required, it blends seamlessly with the floor, providing a feel similar to a single tile. Made of brushed stainless steel, it features adjustable feet, a center outlet, and comes with a connector and lifting tool for easy installation and cleaning. With an overall length of approximately 24 inches, it fits most standard shower opening sizes.

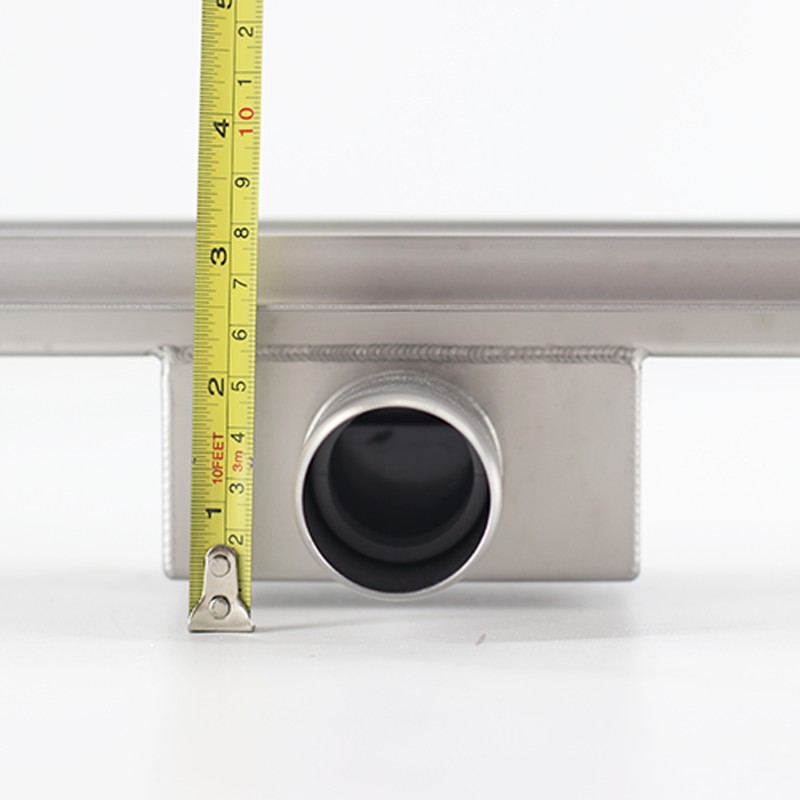

• High-Efficiency Drainage: This Tile Insert Channel Drain features a side-drainage structure with a 50mm outlet inner diameter. The interface includes a stepped adapter, compatible with both 40mm and 50mm drain pipe diameters. Actual flow rate under gravity discharge conditions reaches 30-36 liters per minute. The side-drain design facilitates wall-mounted pipe installation and reduces floor trenching depth, making it particularly suitable for installations in areas with limited floor space or concentrated piping.




• Ultra-Thin Body: With an overall height of approximately 65mm, it is about 20% lower than traditional floor drains, allowing for concealed installation even in bathrooms with limited waterproofing and leveling layer thickness. This structure reduces the depth of cement layer excavation, making it especially suitable for renovation projects, as it can be embedded without extensive damage to the original flooring.




• Invisible Tile Embedding: The panel features an embedded tile design with a groove width of approximately 48-50mm and a depth suitable for common 8-12mm floor tile thicknesses. After installation, the drainage seam width is only 2-3mm, visually integrating with the floor. The concealed structure not only enhances aesthetics but also reduces the feeling of foreign objects underfoot.

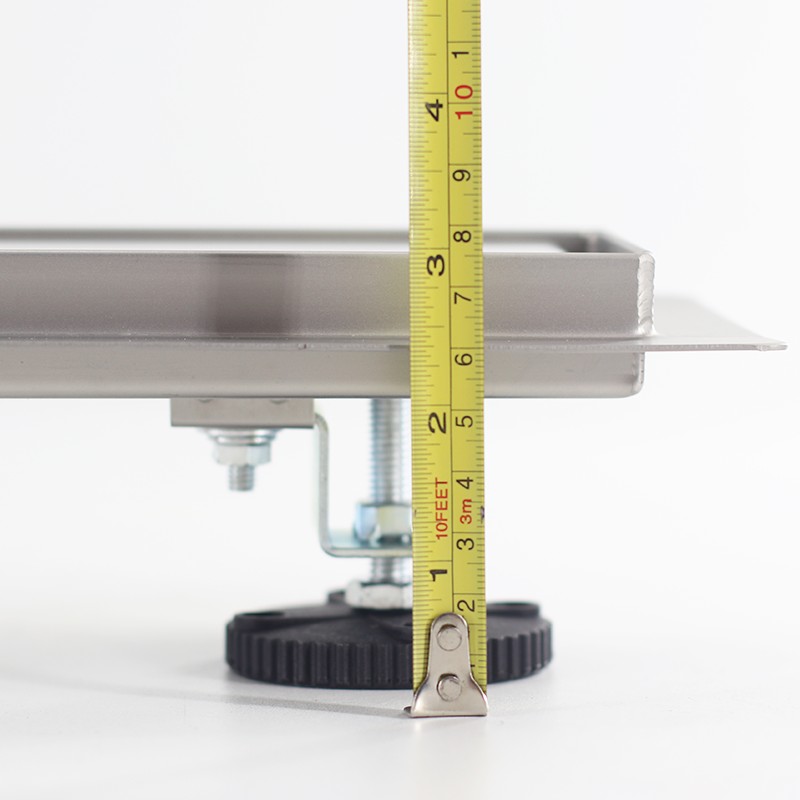

• Adjustable Feet: Equipped with double-threaded adjustable feet at the bottom, the height can be finely adjusted within the range of 15–35mm. During installation, a knob-type mechanism allows for precise leveling, ensuring the panel is perfectly flush with the floor tiles and preventing water accumulation due to protruding edges. The feet utilize a combination of 304 stainless steel screws and an ABS chassis, with a static load capacity of up to 80 kg.




• Odor-Proof and Easy-to-Clean: The drain outlet features a built-in silicone flap odor-proof core and a water seal for double protection, effectively blocking odors from the drain pipe. The flip-top structure automatically opens upon water flow and closes when dry. This design has been verified through simulation testing, achieving a static airtightness of −300Pa. The included cleaning hook allows for direct removal of the panel and filter, enabling users to complete maintenance in minutes.

• Home Shower Applications: Tile Insert Channel Drain is suitable for linear drainage in home shower rooms. It changes the traditional four-way slope to a one-way slope, requiring only a single slope from the tile towards the drain during installation. This reduces the need for small-sized tiles and increases the use of larger tiles (600x600mm and above). A central outlet with a 50mm hose covers the main shower head flow, meeting the continuous drainage requirements of daily showers.




• Accessible Bathrooms: Suitable for accessible shower areas requiring clear passage. The recessed panel is flush with the floor tiles, minimizing step obstruction for wheelchairs or walkers. A one-way slope of 1-2 degrees is sufficient for drainage, maintaining drainage efficiency while ensuring gait stability and foot grip, suitable for long-term use in age-friendly renovations or rehabilitation spaces.




• Balcony Laundry: Installed in front of the washing machine or mop sink on the balcony, it allows for rapid water collection on the floor. The linear channel can cover overflow from the washing machine and the instantaneous water volume during floor washing. The elongated apex is better at trapping lint and hair than a point drain. Regularly lifting the panel for cleaning can reduce pipe blockage frequency and extend the life of the drainage system.

Q: Is 304 or 316 stainless steel more suitable?

A: Most indoor bathroom fixtures can use 304 stainless steel, which meets corrosion resistance requirements and is stable in contact with daily cleaning agents. If the project is near the sea or requires stronger chlorine resistance, it can be upgraded to 316 to improve resistance to pitting and crevice corrosion.

Q: How to match the length to the shower area?

A: Generally, choose a length close to the width of the glass partition or the short side of the shower area, leaving 10 to 20 mm of space at each end for sealing and edge pressing. 24 inches is a universal standard. If the shower area is wider, a longer size or two pieces side-by-side can be used to cover the shower area.

Q: What is the range of tile thickness that can be embedded?

A: The tray groove depth is more suitable for common floor tiles of 8 to 12 mm. If using thicker tiles, the adhesive thickness inside the tray can be reduced or the tile surface can be back-ground to ensure flush with the surrounding floor; if thinner tiles, adhesive or a thin leveling mortar can be added to improve the support and bonding strength inside the tray.

Q: How to ensure waterproofing and sealing?

A: Before installation, complete the leveling of the base layer and double-layer waterproofing. The flange should reliably overlap with the waterproofing layer and be sealed a second time. Use neutral weather-resistant sealant to fill the surrounding gaps. After completion, conduct a 24-hour water retention or spray test. Only proceed with tiling and sealing if no leakage is detected.

Q: How to clean odors and blockages later?

A: Regularly use the provided hook to lift the panel and remove hair and sediment from the tank. Add clean water to the tank every one to two weeks to keep the water seal or silicone flap in effective working condition. If an odor appears, it is usually caused by the water seal drying out or debris accumulation; adding water and cleaning will generally restore normal function. If the odor persists, check the slope of the branch pipes and ensure proper ventilation.
