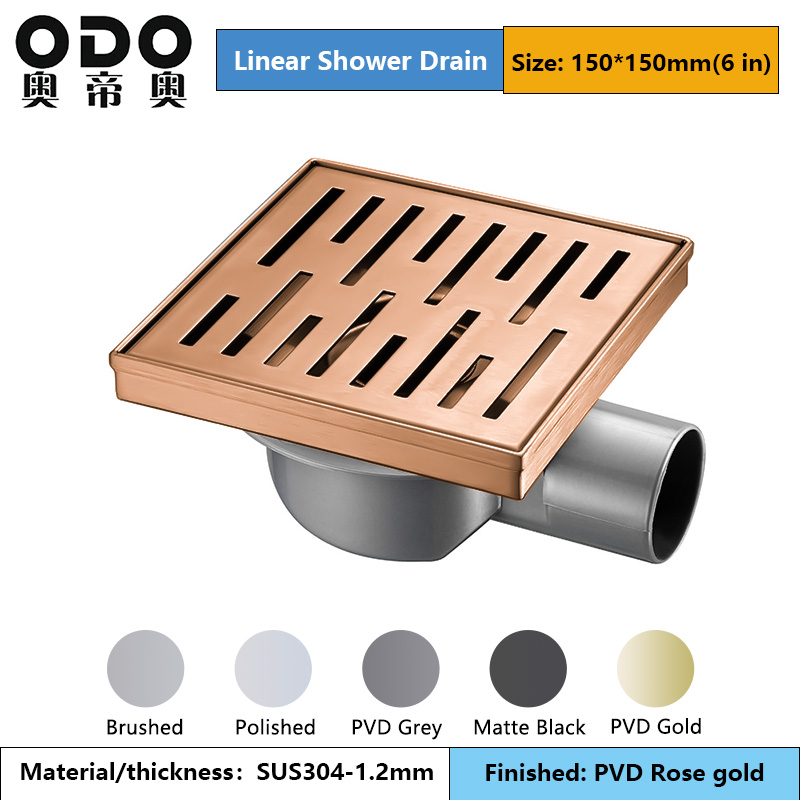

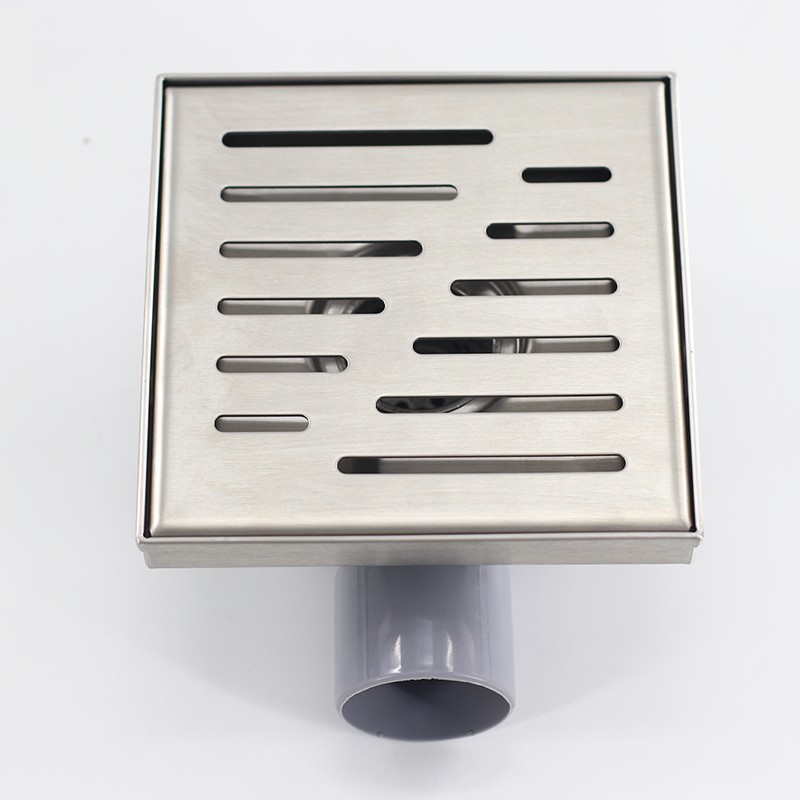

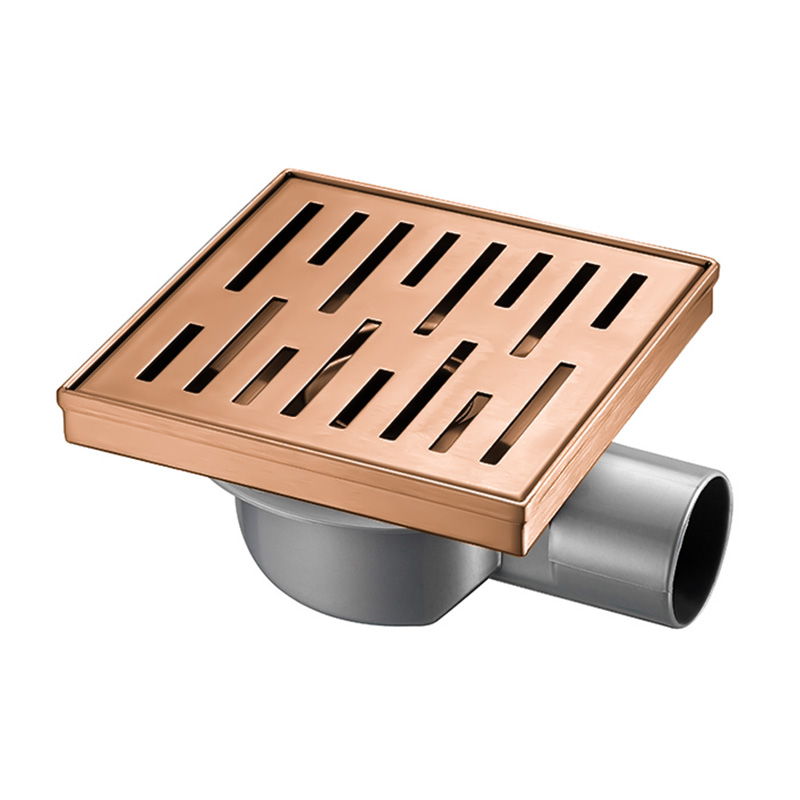

Bathroom floor drains are essential drainage devices installed in bathrooms, shower rooms, and other drainage areas to quickly drain standing water and prevent odor backflow. Made of 1.2mm thick SUS304 stainless steel with a PVD rose gold coating, these drains offer both excellent corrosion resistance and aesthetic appeal. The square dimensions are 150×150 mm, and the side-drain design ensures efficient water flow, making it suitable for both residential and commercial drainage systems.

• Stability: Constructed with SUS304 stainless steel as the main material, the tensile strength reaches 520 MPa, and the yield strength is approximately 210 MPa, ensuring structural stability under long-term pressure. The 1.2 mm plate thickness allows the drainage cover to withstand static pressure exceeding 200 kg without deformation. Edges are precision-bent and welded using CNC technology, with dimensional errors controlled within ±0.1 mm, and a service life exceeding 15 years.




• Corrosion Resistance: The surface undergoes a PVD rose gold coating process, with a film thickness of approximately 0.3 μm and adhesion reaching ASTM C633 standard level 8. It showed no rust or discoloration after 200 hours of neutral salt spray testing. The SUS304 substrate contains approximately 8% nickel, exhibiting excellent acid and alkali resistance and maintaining stable luster in environments with 95% humidity, making it suitable for long-term humid areas.

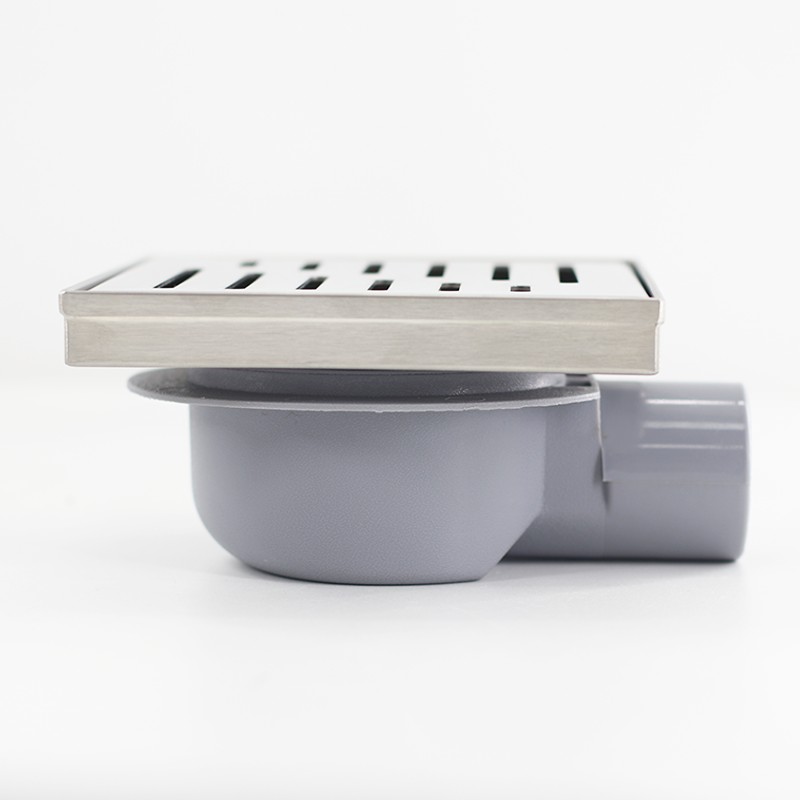

• High Efficiency: The drain outlet adopts a side-discharge structure with optimized fluid guidance design, achieving a maximum drainage capacity of 36 liters/minute, a 28% improvement over traditional vertical drainage. The internal water seal height is 50 mm, effectively preventing odor backflow. The bottom guide channel structure is optimized through CFD fluid simulation, resulting in more uniform drainage speed, reducing residual water accumulation, and keeping the floor dry.




• Exquisite Design: The exterior surface uses a PVD rose gold process, with uniform color and a color difference controlled within ΔE < 1.0, balancing aesthetics and functionality. The surface is polished with 400 grit, achieving a smoothness of Ra ≤ 0.2 μm, providing a smooth feel without sharp edges. The cover plate slots are arranged using CNC laser cutting, with an error of no more than 0.05 mm. The scientifically designed drainage spacing maintains drainage efficiency while preventing hair blockage.

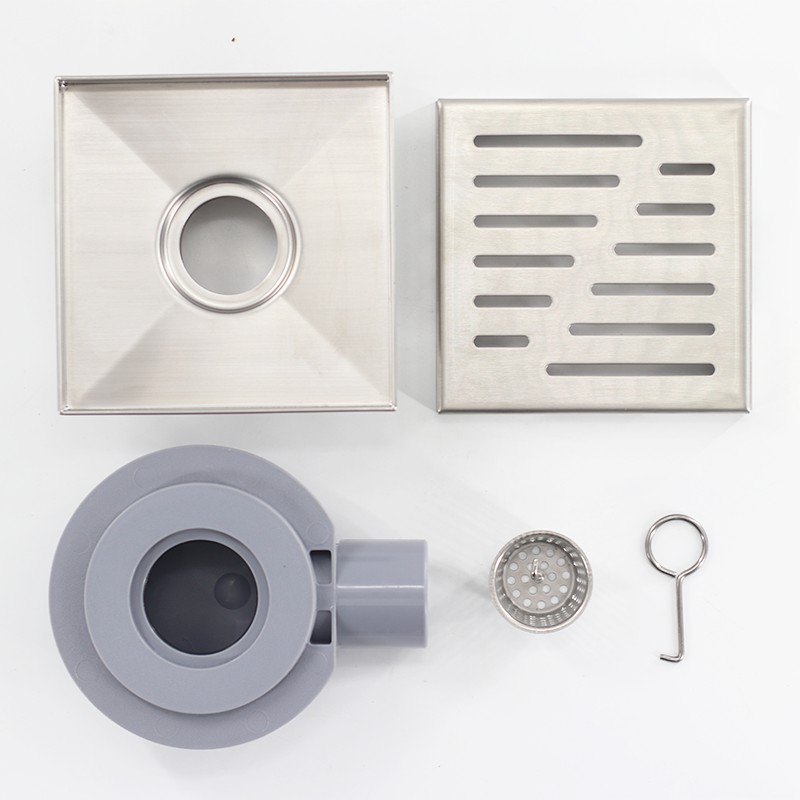

• Easy Installation: The standard 150×150 mm size design accommodates various tile opening specifications. The installation utilizes an embedded structure, compatible with PVC or ABS drain pipe interfaces, with the connector diameter controlled within φ50±0.5 mm. The required installation depth is only 85 mm, allowing for rapid installation even in confined spaces. The cover and base are detachable, allowing for tool-free removal and cleaning during maintenance, saving 40% of maintenance time.

• Home Bathrooms: Suitable for floor drainage in residential bathrooms and shower areas, maintaining a stable drainage volume even under high-frequency water use. The PVD rose gold surface coordinates with modern bathroom décor, meeting functional requirements while enhancing the overall aesthetic. The odor-proof structure effectively prevents backflow of sewer gases, ensuring household hygiene.




• Hotel Rooms: Widely used in the ensuite bathrooms of mid-to-high-end hotels. The product surface boasts excellent corrosion resistance, withstanding daily high-frequency cleaning and hot water rinsing. Precision machining of the cover ensures floor flatness, preventing water accumulation and enhancing room comfort and hygiene.




• Commercial Bathing: Suitable for public bathing spaces such as gyms and spas. The high drainage capacity quickly handles peak flow from multiple users simultaneously. The wear-resistant PVD coating maintains its metallic luster even after prolonged use, reducing maintenance frequency.




• Medical Institutions: Used in hospital shower areas, ward toilets, and cleaning rooms. The SUS304 stainless steel structure withstands chlorine-containing disinfectants, maintaining long-term hygiene and rust-free performance. The structural design facilitates disassembly and cleaning, reducing bacterial accumulation and meeting public health control standards.




• Commercial Apartments: Suitable for commercial complexes, apartment buildings, and high-rise residential projects. Standardized dimensions ensure efficient installation, making them ideal for concentrated, batch construction. The rose gold finish provides a unified aesthetic for high-end apartment spaces, enhancing the overall project quality.

1. What are the dimensions of this floor drain? Is it universal?

The dimensions are 150×150 mm. It features a side-drain design with a 50 mm diameter interface, conforming to internationally accepted drainage standards. It is highly adaptable and suitable for most residential and commercial bathrooms.

2. Is the product rust-proof and corrosion-resistant?

Yes. Made of SUS304 stainless steel with a PVD rose gold finish, it showed no rust or fading after a 200-hour salt spray test, making it suitable for long-term use in high-humidity or detergent-containing environments.

3. Is it odor-proof and insect-proof?

It features a 50 mm high water seal design, effectively blocking sewer gases and insects. It has passed a sealing test, showing no gas leakage under 1.5 kPa back pressure.

4. How to clean and maintain it?

The top cover can be removed directly without tools. It is recommended to clean it monthly with warm water and a neutral detergent, then allow it to air dry. Avoid using strong acid or alkaline cleaners to prolong surface life.

5. Are other colors or surface treatments available?

Yes. In addition to PVD rose gold, we also offer brushed, mirror, PVD gray, matte black, and PVD gold surface treatments, all meeting the same corrosion resistance standards and customizable to project style.

Q: Are you trading company or manufacturer?

A: We are manufacturer, focusing on Bathroom accessories, Floor drain, Shower niche, Electric towel rack, Faucet, Sink, Shower head and Kitchen rack development and sales since 2014. From now on, we have over 10 years of OEM&ODM service experience for TOP sanitary brands.

Q: How to guarantee quality?

A: Our products has passed ISO9001, CE, CUPC, WATERMARK, BASCI, ETL, ROHS, UL. Before mass production, quality sample, production sample, final sample, etc. We have mare than 14 strict QC processes to ensure that product quality meets customer requirements.

Q: Can l buy samples placing orders? Is it free or extra?

A: Yes, you can contact us to get sample. But it is not free, your need to pay sample fee and freight. But the Sample Fee will be refunded upon bulk order.

Q: What is your lead time?

A: It depends on the order quantity and the season of order. Usually we can ship within7-15 days for small quantity, and about 30days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX, ect. ). Please confirm with us before placing orders.

ODO has more than 10 years of service experience for Top Sanitary Brands OEM & ODM, and received high praise from domestic and foreign customers. The products are widely used in

Residential: New Construction, Remodel, Renovations

Hospitality: Resorts, Hotels, Clubhouses, Gyms, Spas Healthcare

Facilities: Hospitals, Showers, Driveways, Balconies, Commercial Kitchens, Storm Drainage Universities, Office Buildings, Industrial

ODO has scale advantages, resource advantages, integration advantages, technology research and development advantages, and has a perfect pre-sale, sale, after-sales service system. With the production and development of high-end wide bathroom hardware products as the orientation, continuous innovation, seeking transformation, willing to provide global customers with bathroom pendants, floor drains, electric towel racks, niches, faucets, sinks, shower, bathroom mirrors and other bathroom hardware products.

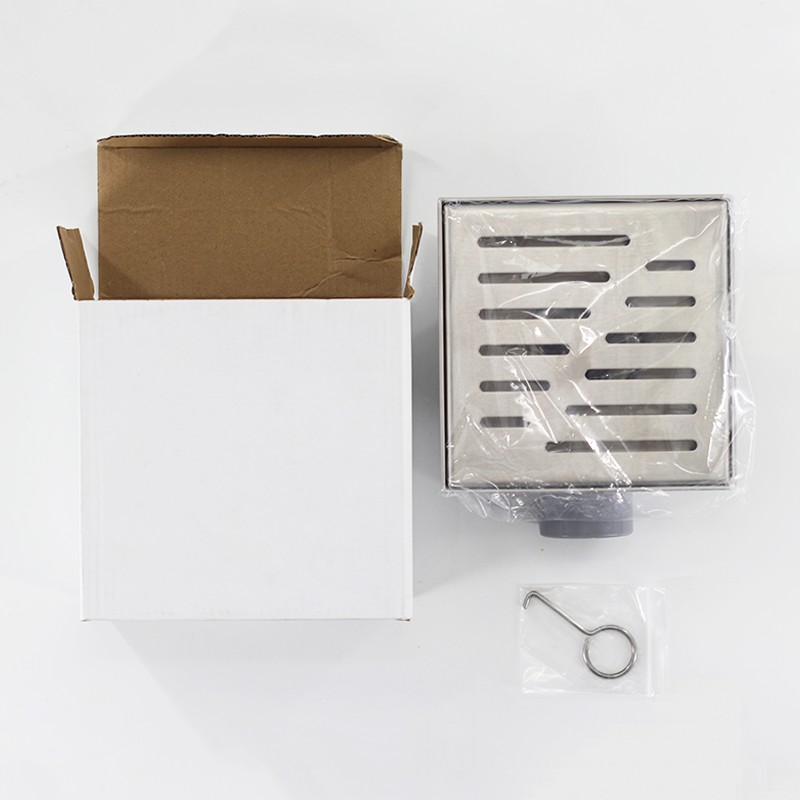

We usually use neutral packing. And can be packaged customized packaging, change packaging materials, and install protective panels, wooden frames or pallets. The product packaging has passed EPR certification in Germany and France. Whether you need cut packaging, certified materials or general packaging advice, our team of experts is here to help.
