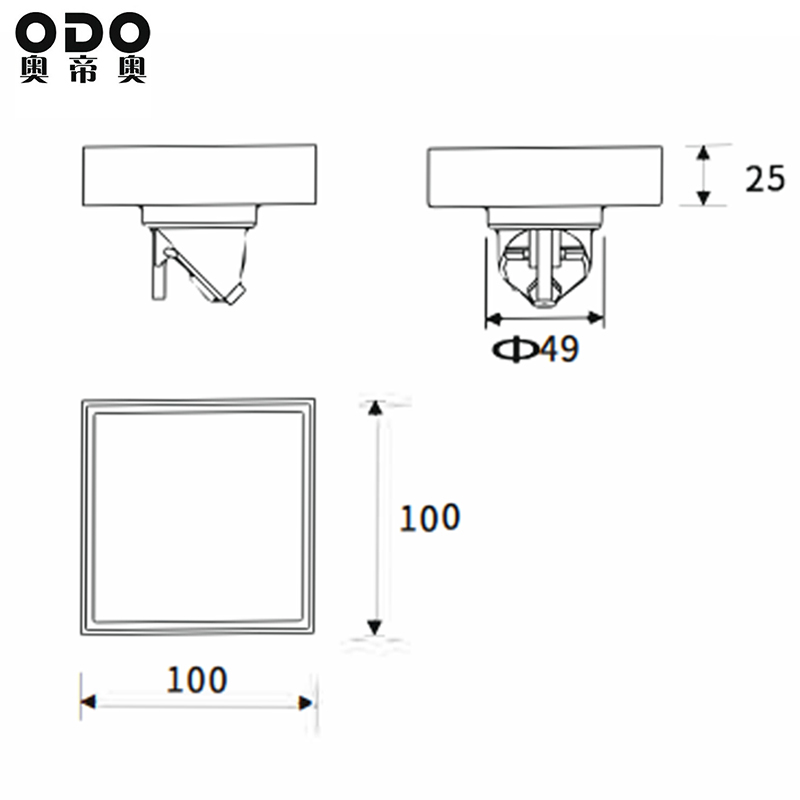

Linear Shower Drain Size: 100mm length, 100mm width, 25mm height, with 2.0mm thickness. 50mm central outlet, 28.76 L/min High Flow Capability.

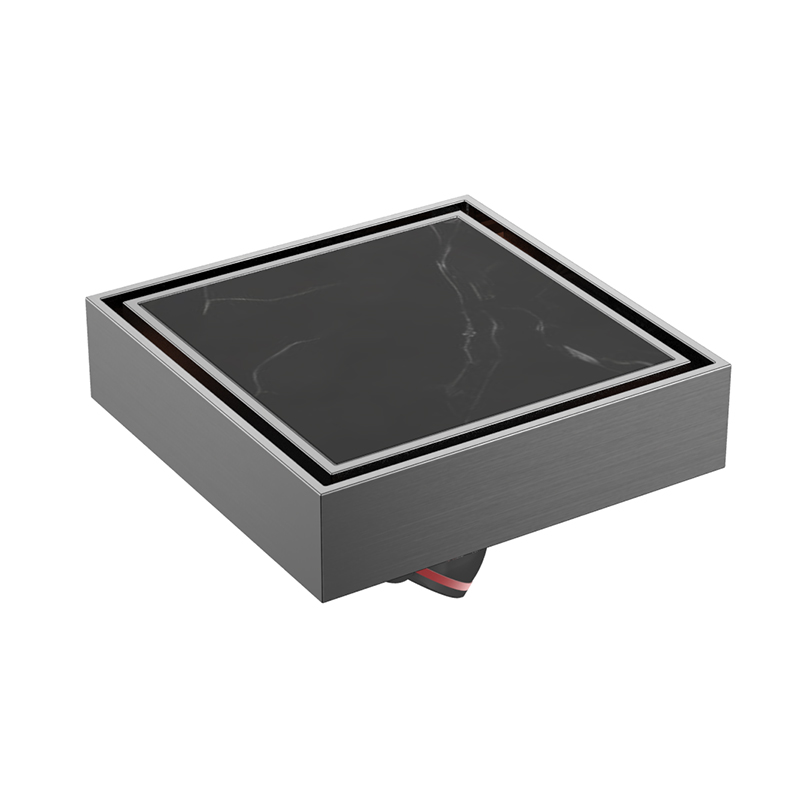

PVD Brushed Grey Invisible Drain: AISI 304 Stainless Steel, Lv.10 PVD electroplating, electrophoretic or baked Lacquer matte black Surface, protect against corrosion & rust. With ISO Certified.

Deep Slope Design: Shallow 'V' Profile to Aide Flow of Water to Shower Drain Outlet. Enhanced internal slope virtually eliminates water remaining in the channel. Can be used in kitchen, bathroom, garage, basement and toilet ;and also Preventing unpleasant smell, insects and mice from entering the house.

One Grate, Two Choice: The Flat or Tile-insert grate (2-in-1) can be used by gold flat appearance or invisible tile-in look by your own bathroom tile.

50mm Shower Drain core can be Purchased Separately, other drain hole size need to custom please contact us.

Premium Surface

The drain uses PVD coating technology on 304 stainless steel, creating a surface hardness that can reach approximately 1200 HV to 1500 HV. This is significantly higher than ordinary electroplated finishes. For developers and distributors, stronger surface protection helps reduce scratching during installation, minimizes finish deterioration during cleaning and lowers replacement costs over the project lifecycle.

Efficient Water Flow

The 10 cm concealed drainage structure is engineered to support drainage capacities exceeding 30 liters per minute under standard installation conditions. Faster drainage helps reduce standing water in shower areas and lowers the risk of water spreading into dry zones. For contractors, this can reduce post-installation complaints related to slow drainage performance.

1、Concealed Cover

The removable cover is designed to hide the drainage opening while maintaining a continuous floor appearance. Precise cover-to-frame tolerances help keep the surface aligned with surrounding tiles. This structure requires accurate manufacturing because even small dimensional deviations can affect both appearance and drainage efficiency.

2、PVD Grey Finish

The brushed grey surface is produced through vacuum coating technology rather than simple paint application. This process creates stronger adhesion between the coating and stainless steel substrate. The result is a finish that remains more stable under humidity, cleaning chemicals and daily bathroom use.

3、Integrated Frame

The drain frame and body are manufactured as a coordinated system to support easier installation and long-term stability. Frame straightness, outlet alignment and cover positioning are checked during production to reduce installation adjustments and improve overall drainage reliability.

1、Luxury Apartment Developments

Luxury residential projects often prioritize seamless bathroom aesthetics. PVD Brushed Grey Invisible Drain helps developers create clean floor transitions while maintaining reliable water management. The grey finish coordinates well with modern stone, porcelain and concrete-effect tile collections used in premium apartments.

2、Boutique Hotels

Boutique hotel bathrooms frequently combine design-focused interiors with high guest turnover. The concealed drain structure supports a refined appearance while handling daily shower use across multiple rooms. The durable finish also helps maintain visual consistency after repeated cleaning cycles.

3、High-End Villas

Villa projects often specify premium hardware finishes throughout the bathroom. The brushed grey appearance allows drainage components to complement faucets, shower systems and accessories without introducing contrasting metal finishes. This helps designers achieve a more coordinated final result.

4、Spa Facilities

Spa environments expose drainage products to constant moisture, cleaning agents and heavy daily usage. Stainless steel construction and PVD surface treatment help support long-term performance while maintaining the appearance expected in wellness-focused environments.

5、Bathroom Showrooms

Showroom installations require products that demonstrate both functionality and design value. The concealed structure allows distributors and sanitary ware retailers to showcase modern drainage concepts that align with current architectural trends and customer expectations.

PVD Production Management

Our factory controls polishing, surface preparation and PVD coating operations through dedicated production procedures. Coating thickness, color consistency and surface texture are reviewed before assembly to help maintain stable appearance across large project orders.

Dimensional Inspection

Invisible drains require tighter dimensional control than traditional exposed drains. Our inspection process focuses on frame straightness, cover fit, outlet positioning and installation depth consistency. These checks help reduce installation issues on construction sites.

Assembly Verification

Each production batch is reviewed for cover movement, frame alignment, drainage channel integrity and outlet connection accuracy. This helps ensure the drain functions correctly after installation while maintaining the intended concealed appearance.

Project Supply Planning

Our production team can support bulk project requirements with customized packaging, logo marking and project-specific labeling. Stable material sourcing and production scheduling help support delivery requirements for hotels, apartments and large residential developments.

Architectural Drainage Support

Our team can support PVD Brushed Grey Invisible Drain orders for sanitary ware distributors, hospitality projects, residential developers, bathroom renovation suppliers and OEM/ODM drainage brands. Surface finish, outlet configuration, packaging and branding requirements can be discussed before production.

Get A Quote

Whether you are specifying drainage systems for a hotel development, a luxury residential project or a premium bathroom collection, our team can help you select the right PVD Brushed Grey Invisible Drain configuration for your market. Share your project quantity, finish requirements and installation specifications, and we will prepare a quotation tailored to your purchasing plan.

To discover more PVD Brushed Grey Invisible Drain designs and contemporary bathroom drainage solutions, please visit our official website:

https://www.odosanitary.com/

Q: Are you trading company or manufacturer?

A: We are manufacturer, focusing on Bathroom accessories, Floor drain, Shower niche, Electric towel rack, Faucet, Sink, Shower head and Kitchen rack development and sales since 2014. From now on, we have over 10 years of OEM&ODM service experience for TOP sanitary brands.

Q: How to guarantee quality?

A: Our products has passed ISO9001, CE, CUPC, WATERMARK, BASCI, ETL, ROHS, UL. Before mass production, quality sample, production sample, final sample, etc. We have mare than 14 strict QC processes to ensure that product quality meets customer requirements.

Q: Can l buy samples placing orders? Is it free or extra?

A: Yes, you can contact us to get sample. But it is not free, your need to pay sample fee and freight. But the Sample Fee will be refunded upon bulk order.

Q: What is your lead time?

A: It depends on the order quantity and the season of order. Usually we can ship within7-15 days for small quantity, and about 30days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX, ect. ). Please confirm with us before placing orders.

ODO has more than 10 years of service experience for Top Sanitary Brands OEM & ODM, and received high praise from domestic and foreign customers. The products are widely used in

Residential: New Construction, Remodel, Renovations

Hospitality: Resorts, Hotels, Clubhouses, Gyms, Spas Healthcare

Facilities: Hospitals, Showers, Driveways, Balconies, Commercial Kitchens, Storm Drainage Universities, Office Buildings, Industrial

ODO has scale advantages, resource advantages, integration advantages, technology research and development advantages, and has a perfect pre-sale, sale, after-sales service system. With the production and development of high-end wide bathroom hardware products as the orientation, continuous innovation, seeking transformation, willing to provide global customers with bathroom pendants, floor drains, electric towel racks, niches, faucets, sinks, shower, bathroom mirrors and other bathroom hardware products.

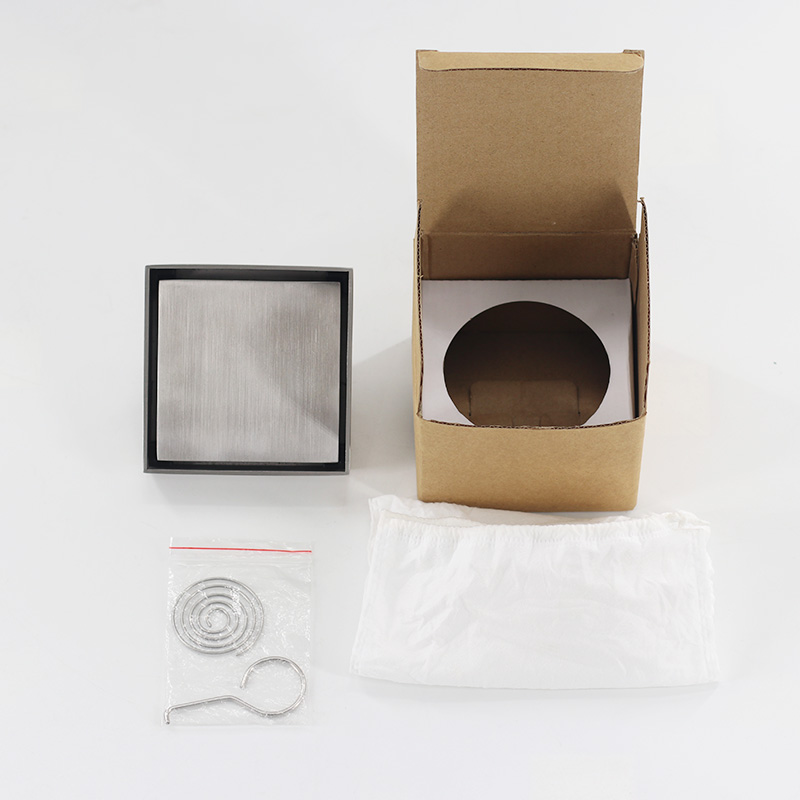

We usually use neutral packing. And can be packaged customized packaging, change packaging materials, and install protective panels, wooden frames or pallets. The product packaging has passed EPR certification in Germany and France. Whether you need cut packaging, certified materials or general packaging advice, our team of experts is here to help.
