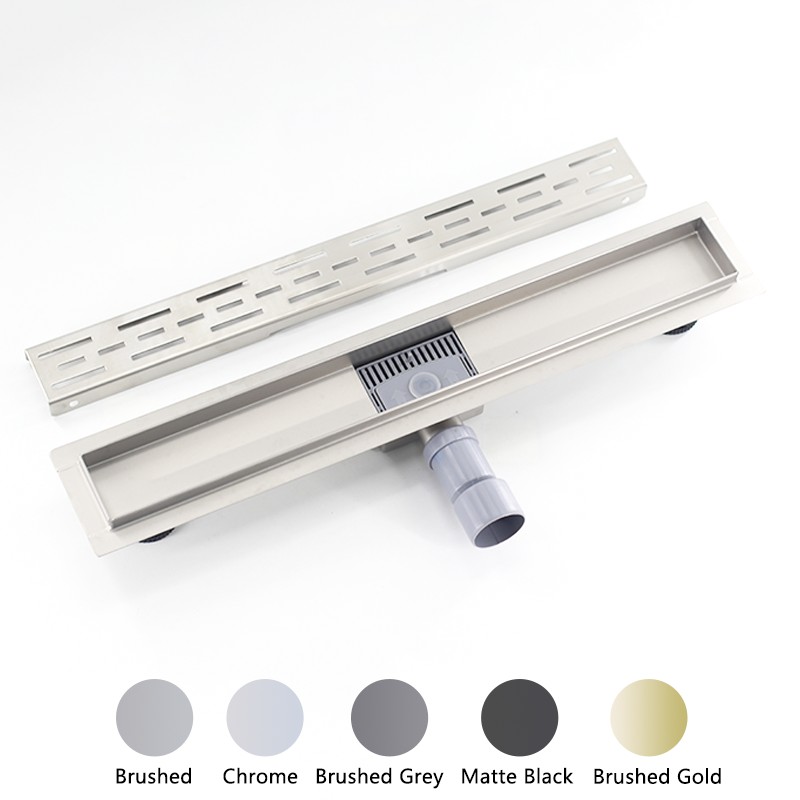

A Long Floor Drain for Shower is a linear, elongated drainage system for shower or wet areas. It improves upon traditional point-source drainage by using extended, slit-like outlets, directing water flow linearly along the slope of the floor tiles into the drain channel before exiting through internal drainage channels. These drains are typically made of 304 stainless steel with brushed, frosted, sandblasted, or electroplated finishes, and come in a variety of colors, including silver, gray, black, and gold, to match different bathroom styles.

• High Flow Rate Discharge: The Long Floor Drain for Shower has a diameter of 50 mm and a channel length of over 600 mm. A single outlet can achieve a measured flow rate of 36 to 40 liters per minute, significantly higher than the approximately 20 liters per minute of traditional round floor drains. Its internal channels utilize a uniform-width flow-guiding structure, ensuring rapid drainage even under high flow conditions and preventing water accumulation.




• Multi-Layer Odor Prevention: The interior features a dual protection system of silicone flaps and a water seal, automatically closing to prevent odor backflow when dry. It maintains a tight seal even at a static airtightness test value of −300 Pa, unaffected by negative pressure or airflow disturbances. The silicone material has passed temperature and aging tests, with a service life exceeding 100,000 opening and closing cycles.




• Adjustable Installation: The bottom features threaded feet, allowing for height adjustment from approximately 15 to 35 mm, enabling precise adjustments based on tile thickness and leveling layer variations. Fine-tuning of the tilt during installation ensures consistent drainage direction and prevents backslope formation at tile joints.

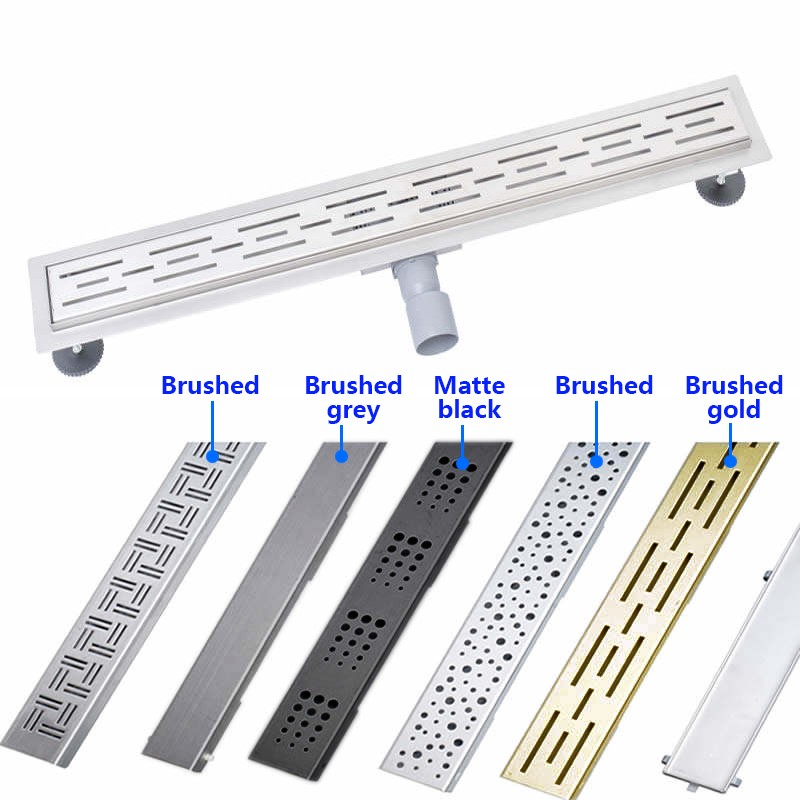

• Multiple Faceplate Options: The images show that the product supports over 30 different faceplate patterns, made from materials including brushed stainless steel, tempered glass, and colored electroplating. The faceplate thickness is approximately 1.2 mm, ensuring durability. The surface is laser-cut or perforated, with uniform drainage holes and a porosity controlled between 25% and 35%. Customers can customize patterns and colors to meet diverse decorative needs.

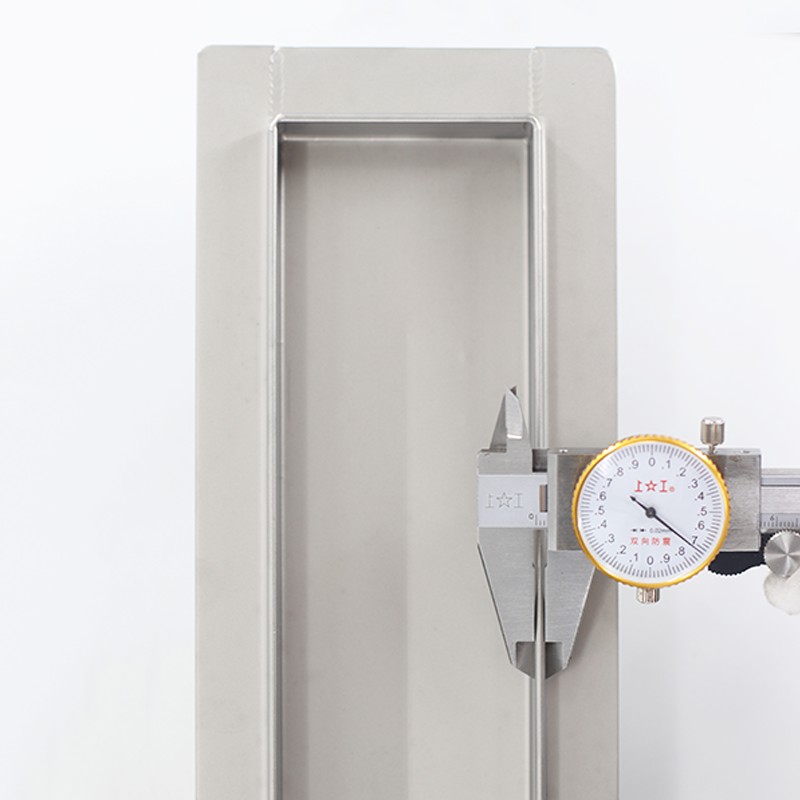

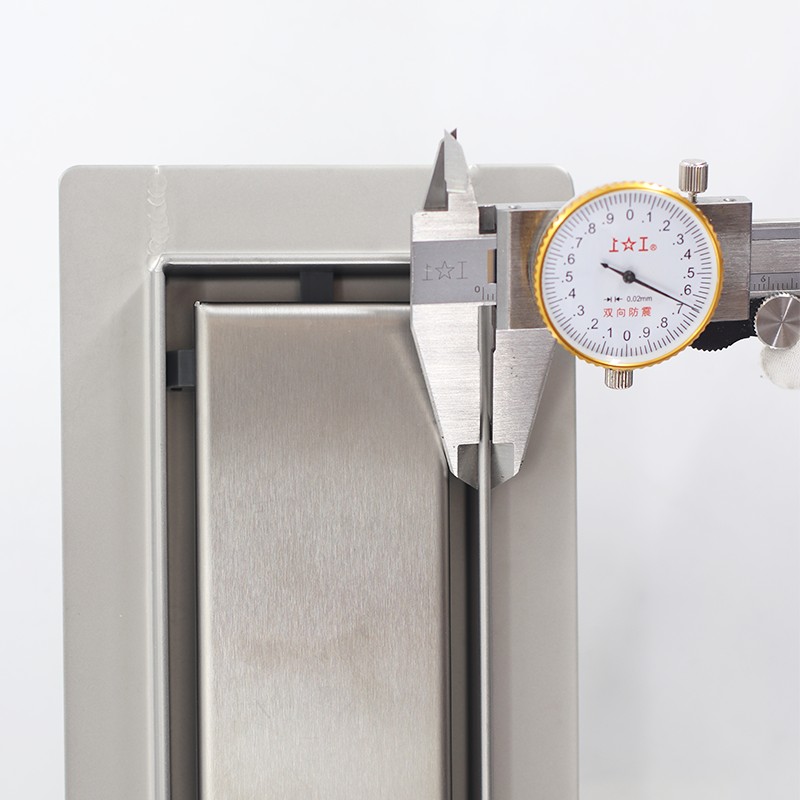

• Corrosion-Resistant Structure: Made of 1.2 mm thick 304 stainless steel, integrally formed and welded, with a brushed or electroplated surface, offering excellent corrosion resistance. After a 24-hour salt spray test, no obvious rust spots or color difference were observed, and the damp heat resistance test reaches 240 hours. Its welds are uniform and tight, with chamfering precision less than 0.2 mm, making it less prone to scale buildup.

• Home Shower Area: Long Floor Drain for Shower is suitable for home shower areas and bathrooms with separate wet and dry areas. The linear drainage system allows for a unidirectional slope during installation, simplifying tile laying and reducing cutting. In actual use, drainage is more even, reducing the likelihood of water accumulation.




• Commercial Clubs: Suitable for public places such as gyms, changing areas, or spas, multiple drains can be installed side-by-side according to the shower layout. The linear drainage strip can accommodate multiple water usages simultaneously during peak hours, reducing drainage pressure. The modular structure facilitates centralized maintenance, minimizing downtime due to blockages.




• Balcony Drainage: Can be installed on balconies, laundry areas, or in front of mop sinks. Its wide length allows for quick drainage of washing machine overflow and cleaning wastewater. The flush appearance with the tiles reduces tripping risks, while the odor-proof structure effectively prevents backflow of odors from the drain pipes. Suitable for high-rise residential buildings and enclosed balconies.




• Kitchen Floors: Used for drainage areas in restaurant kitchens or open kitchens. Drain lengths can be customized to over 1000 mm, covering water flow from washing and rinsing areas. The 304 stainless steel structure is resistant to oil and detergents and can be washed with hot water without discoloration.




• Outdoor Patio: Suitable for installation on patios or around pools. The UV-resistant electroplated surface protects against long-term sun exposure and rain. The sloped design, compatible with paving stones, allows for rapid drainage, preventing slips and falls. Adjustable feet ensure stable mounting on various hard surfaces.

Q: What are the standard dimensions of this floor drain?

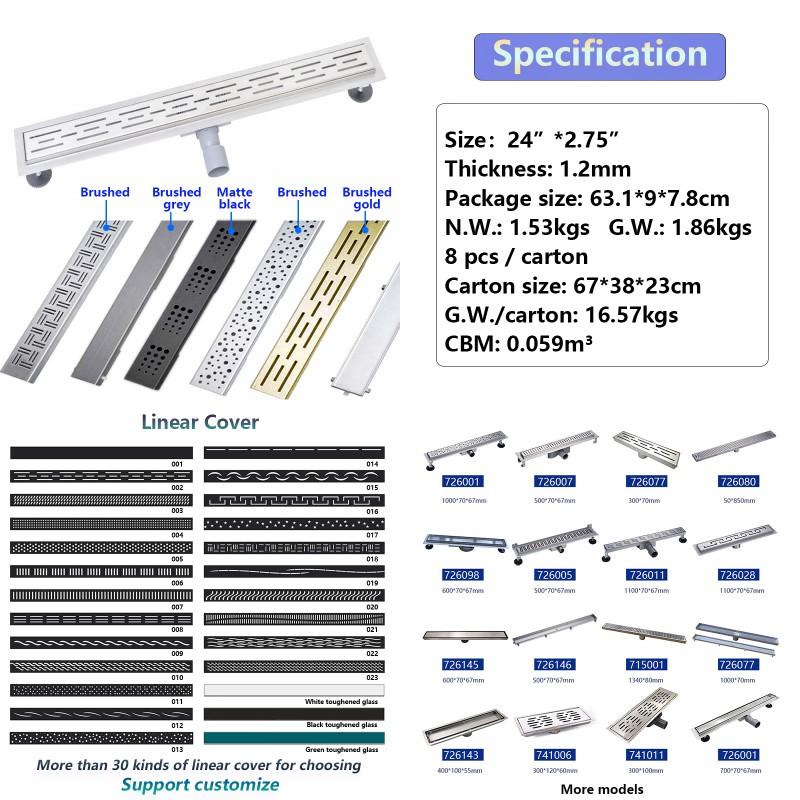

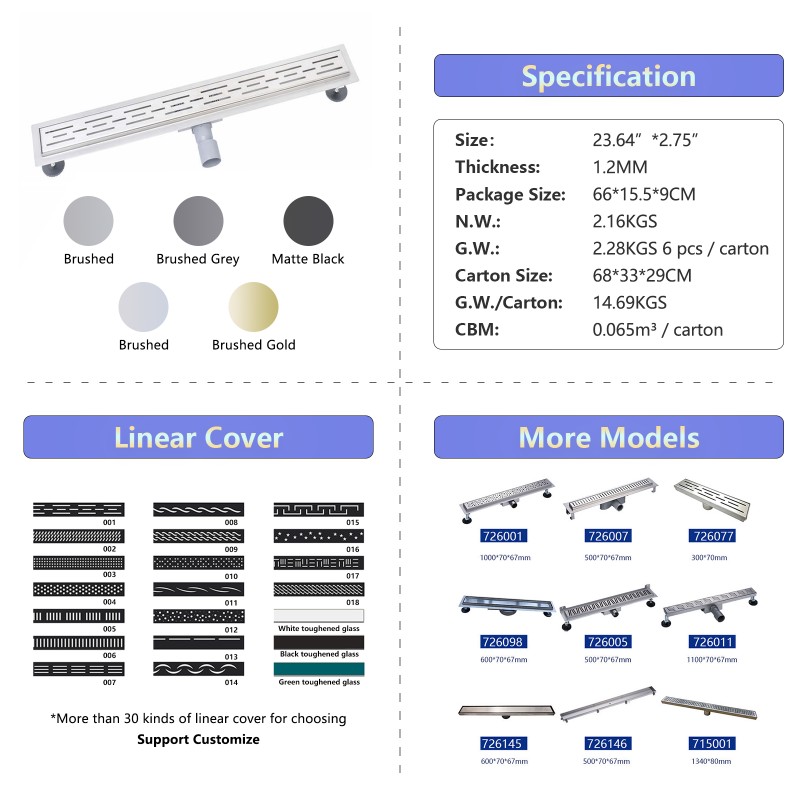

A: The standard length of the Long Floor Drain for Shower is 23.64 inches (approximately 600 mm), the width is 2.75 inches (approximately 70 mm), and the thickness is 1.2 mm. Custom lengths from 300 to 1200 mm are available to suit different spaces.

Q: What types of floor tiles can it be used with?

A: Suitable for 8-12 mm thick ceramic or stone floors. If the tiles are thin, increase the thickness of the adhesive backing during installation; if they are thick, reduce the thickness of the leveling layer within the drain channel to ensure flush installation.

Q: Will the drainage produce noise?

A: The internal flow channel features a rounded corner design to reduce water flow impact and air bubble noise. The average sound level during operation is measured to be below 45 decibels, which is within the quiet drainage range and will not affect daily use.

Q: Will the cover color fade?

A: The Long Floor Drain for Shower uses electroplating or sandblasting oxidation processes, and its surface maintains its original gloss after 500 wet rubbing tests. For high humidity or chlorine-containing environments, we recommend choosing the brushed natural or gray color for a longer lifespan.

Q: How to clean and maintain it?

A: Use the included removal hook to lift the cover, remove hair and deposits, and then rinse the tank with clean water. We recommend a simple cleaning once a month to maintain the odor-proof device and proper drainage.

Q: Are you trading company or manufacturer?

A: We are manufacturer, focusing on Bathroom accessories, Floor drain, Shower niche, Electric towel rack, Faucet, Sink, Shower head and Kitchen rack development and sales since 2014. From now on, we have over 10 years of OEM&ODM service experience for TOP sanitary brands.

Q: How to guarantee quality?

A: Our products has passed ISO9001, CE, CUPC, WATERMARK, BASCI, ETL, ROHS, UL. Before mass production, quality sample, production sample, final sample, etc. We have mare than 14 strict QC processes to ensure that product quality meets customer requirements.

Q: Can l buy samples placing orders? Is it free or extra?

A: Yes, you can contact us to get sample. But it is not free, your need to pay sample fee and freight. But the Sample Fee will be refunded upon bulk order.

Q: What is your lead time?

A: It depends on the order quantity and the season of order. Usually we can ship within7-15 days for small quantity, and about 30days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX, ect. ). Please confirm with us before placing orders.

ODO has more than 10 years of service experience for Top Sanitary Brands OEM & ODM, and received high praise from domestic and foreign customers. The products are widely used in

Residential: New Construction, Remodel, Renovations

Hospitality: Resorts, Hotels, Clubhouses, Gyms, Spas Healthcare

Facilities: Hospitals, Showers, Driveways, Balconies, Commercial Kitchens, Storm Drainage Universities, Office Buildings, Industrial

ODO has scale advantages, resource advantages, integration advantages, technology research and development advantages, and has a perfect pre-sale, sale, after-sales service system. With the production and development of high-end wide bathroom hardware products as the orientation, continuous innovation, seeking transformation, willing to provide global customers with bathroom pendants, floor drains, electric towel racks, niches, faucets, sinks, shower, bathroom mirrors and other bathroom hardware products.

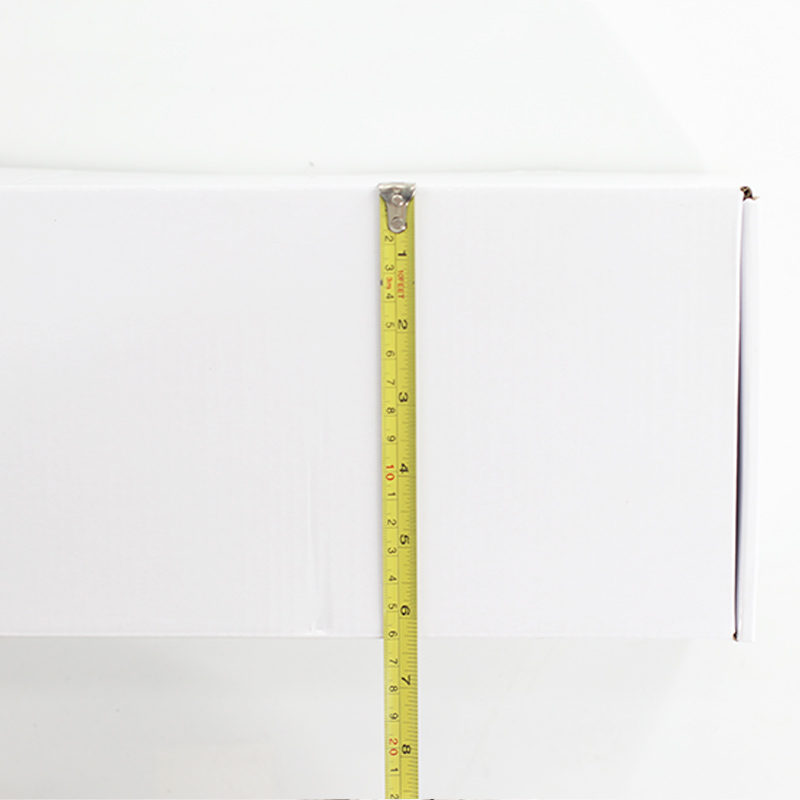

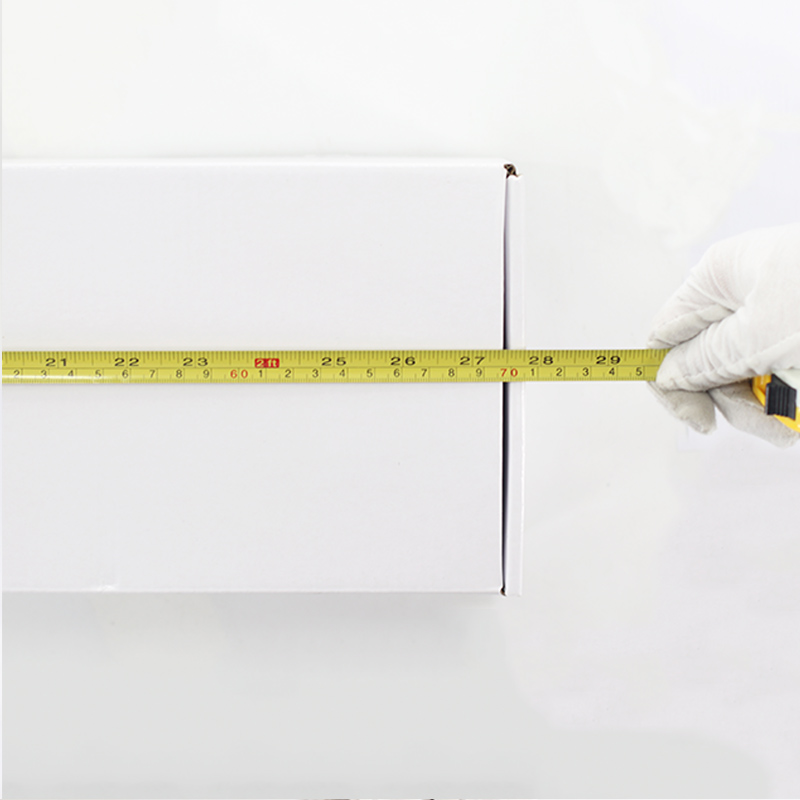

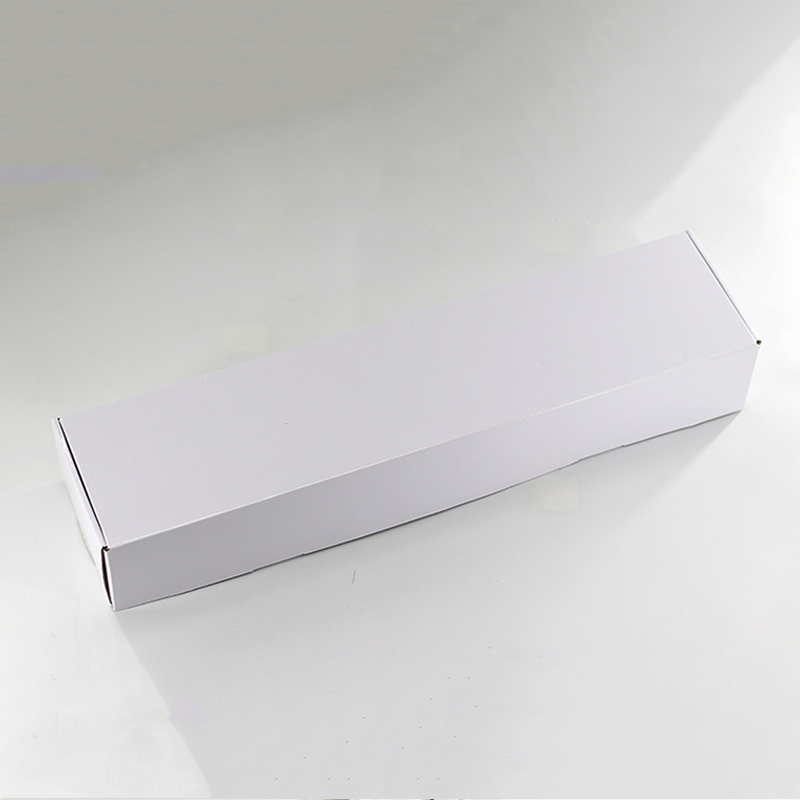

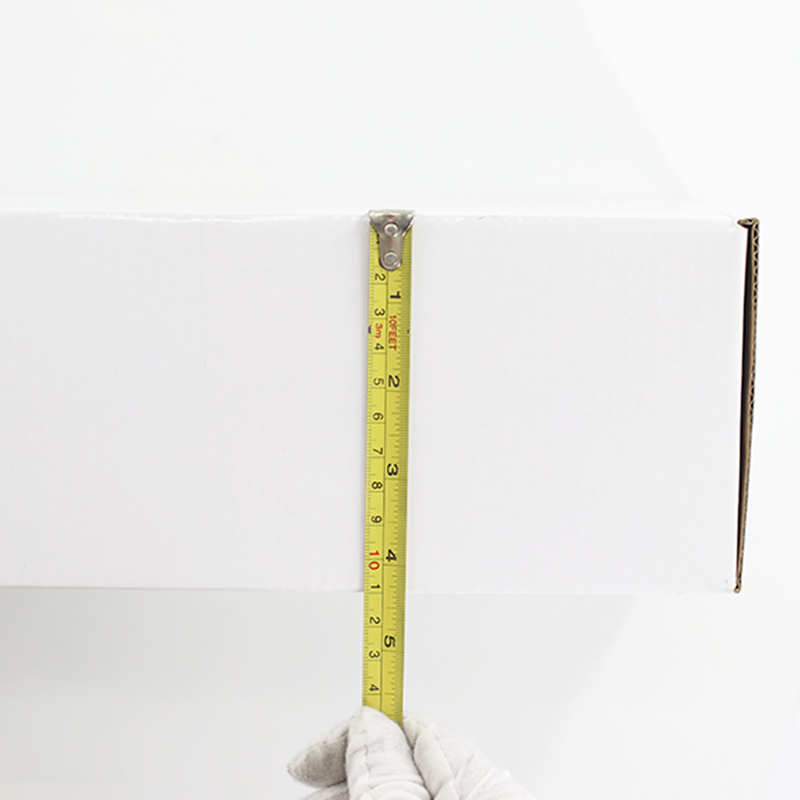

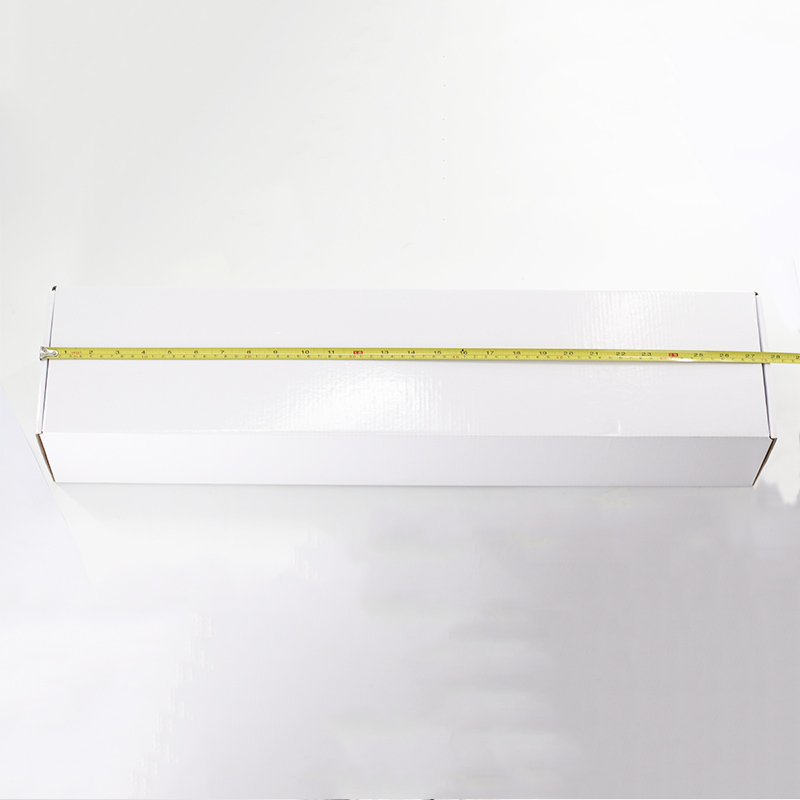

We usually use neutral packing. And can be packaged customized packaging, change packaging materials, and install protective panels, wooden frames or pallets. The product packaging has passed EPR certification in Germany and France. Whether you need cut packaging, certified materials or general packaging advice, our team of experts is here to help.
