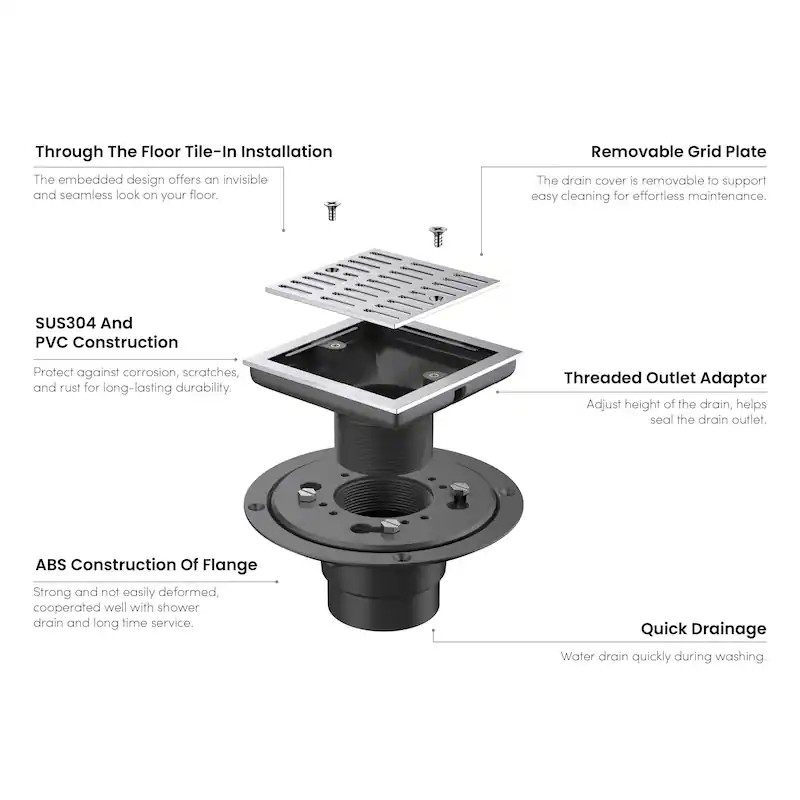

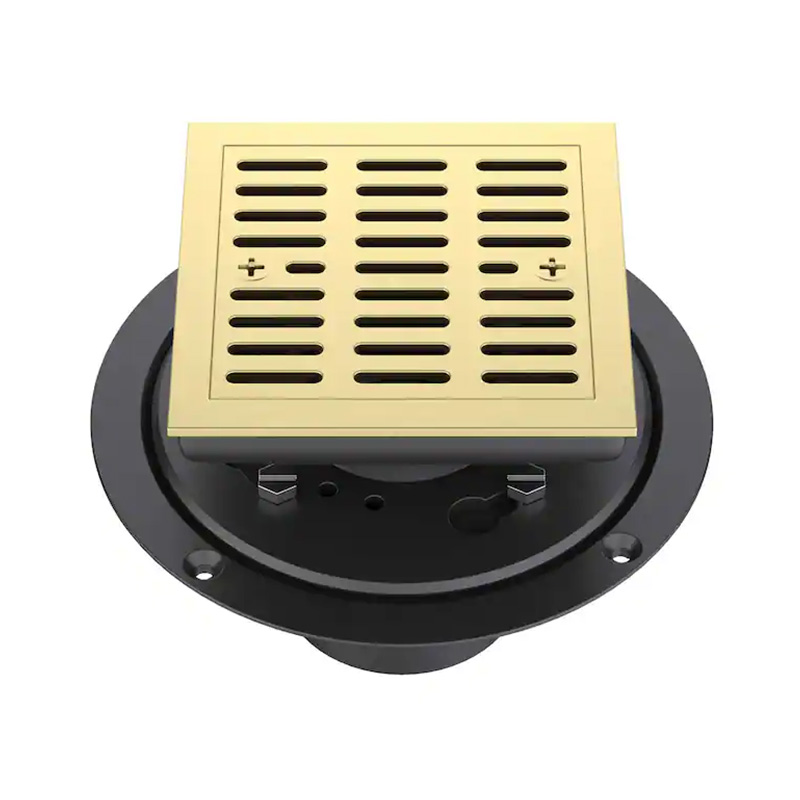

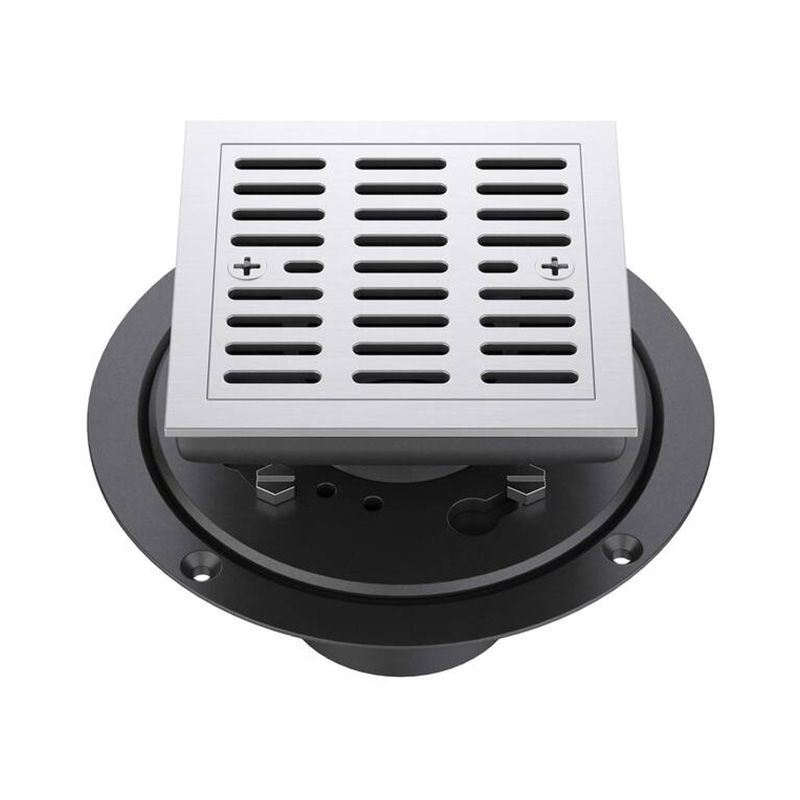

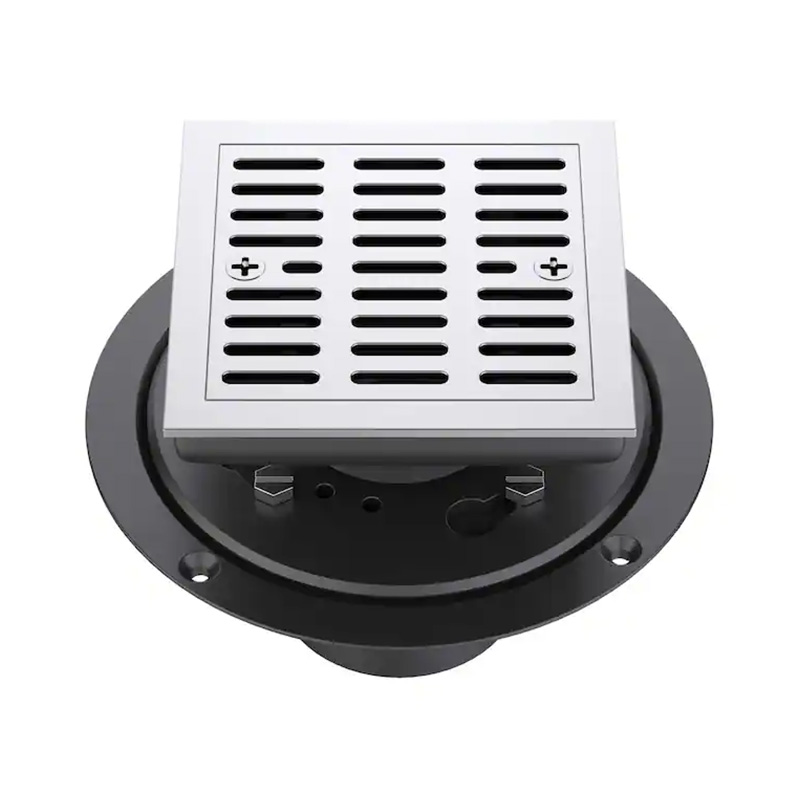

The Floor Drain with Deck Flange is a floor drainage system with an integrated deck flange structure, designed specifically for floor drainage applications requiring high sealing performance, stable installation, and long-term leak prevention. This product features a 4.5-inch square metal drain grate, combined with a widened bottom flange and an adjustable threaded outlet, allowing for complete mechanical compression and structural locking with the floor's waterproofing layer during installation. The upper part of the product uses a SUS304 metal grate, with surface finishes available in chrome plating, brushed gold, brushed nickel, and matte black, ensuring both corrosion resistance and aesthetic consistency.

1. Stable Design

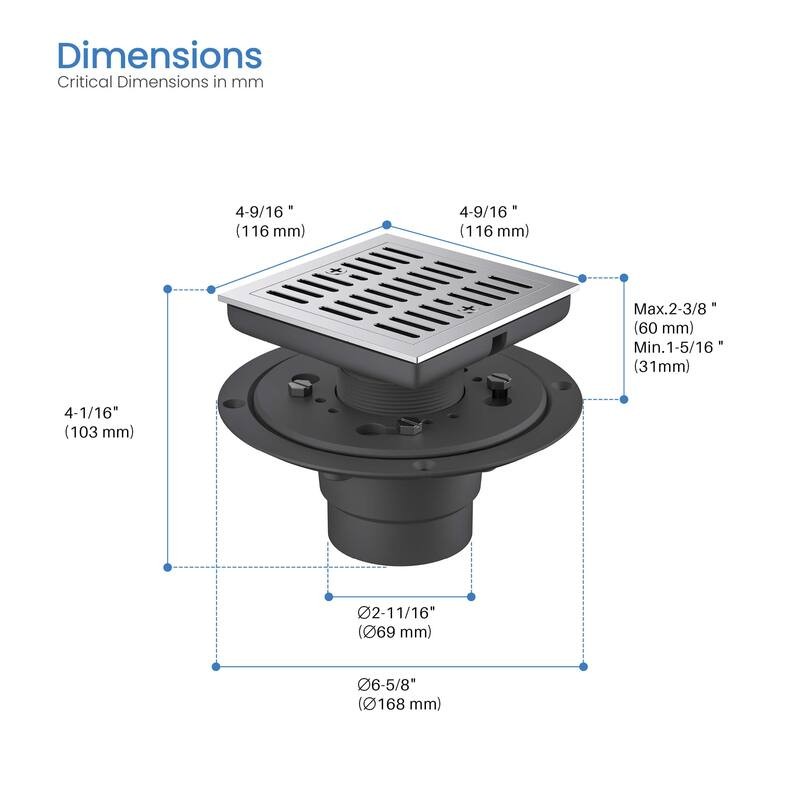

The Floor Drain with Deck Flange features an integrated flange structure with a diameter of approximately 168mm. The flange thickness and load-bearing surface are structurally optimized to create a large-area compression contact with the waterproofing layer during installation. Tested to withstand over 200kg of vertical static load without deformation, it effectively prevents loosening and leakage problems caused by changes in ground stress during long-term use, improving overall system stability.

2. High Efficiency

The floor drain features a direct-flow channel design internally, with an outlet inner diameter of approximately 69mm. The short water flow path and low resistance allow for rapid drainage. Under standard water volume testing conditions, the drainage capacity reaches over 30L per minute, quickly removing accumulated water, reducing the time water remains on the surface, and minimizing the impact of humid environments on the floor.

3. Sealed Design

The product uses a threaded outlet connection structure with precisely matched thread pitch and depth, creating a stable mechanical interlock with the pipe. Combined with the compression of the waterproofing layer by the deck flange, the overall system shows no leakage under 0.05MPa static water pressure testing, effectively improving the sealing reliability of the floor drainage point.

4. Durable

The top cover grille is made of SUS304 stainless steel, and withstands salt spray testing for over 72 hours without significant corrosion. The surface plating, including chrome, brushed gold, brushed nickel, and matte black finishes, has a thickness controlled within the 8–12μm range, maintaining a stable appearance and structural strength even in high-humidity environments, suitable for long-term use.

5. Safe Design

The grille edges are laser-cut and finely polished, with corner chamfers controlled within 0.3mm, resulting in a burr-free surface. The grille opening width and spacing are calculated to ensure drainage efficiency while effectively preventing large particles from entering the pipe, reducing the risk of blockage and improving safety.

1. Bathroom Spaces

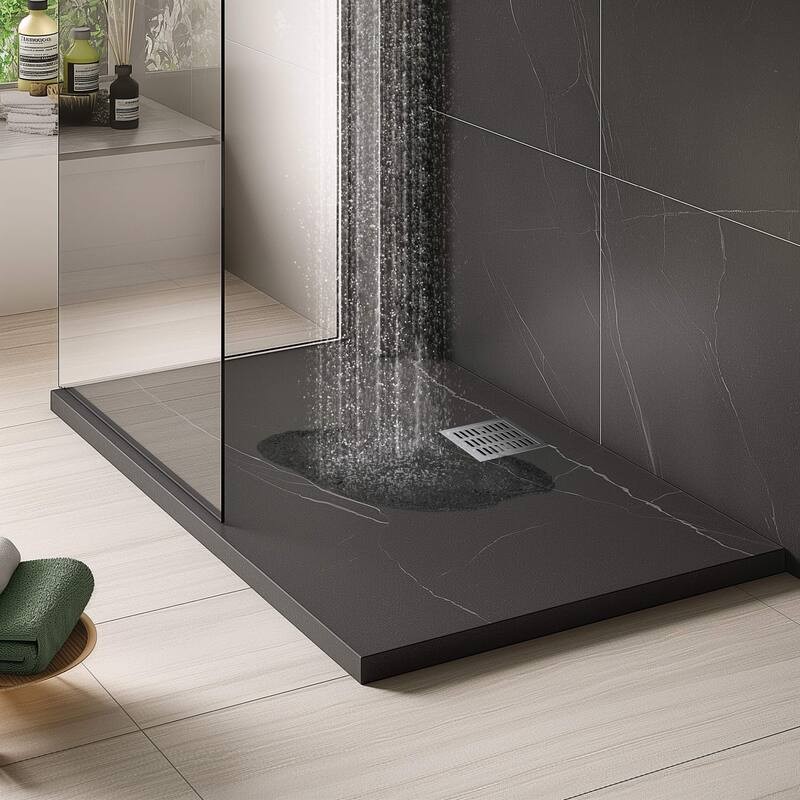

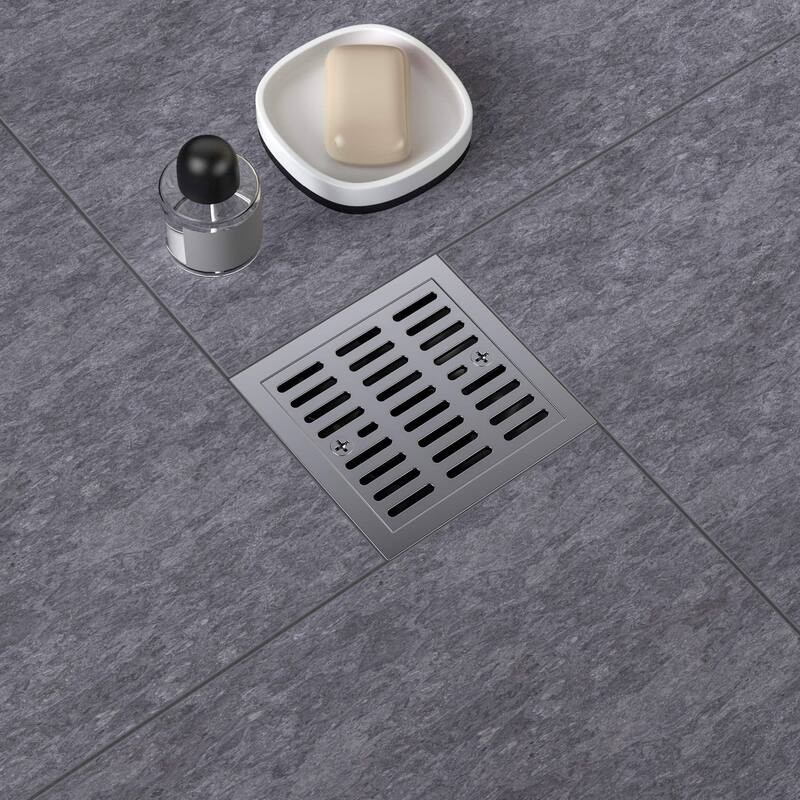

In home or apartment bathrooms, the Floor Drain With Deck Flange provides a seamless connection with tiles, with an adjustable installation height range of approximately 31–60mm, adapting to different leveling layer thicknesses. Its stable drainage capacity can handle continuous water use during showering, reducing water accumulation on the floor and improving overall comfort.

2. Hotel Guest Rooms

Hotel guest rooms require high stability and consistency in their drainage systems. This product, with its standardized specifications and multiple surface treatment options, facilitates batch installation and style matching. High drainage efficiency supports high-frequency use environments, reducing maintenance and contributing to lower long-term operating costs.

3. Public Washrooms

In high-traffic public washrooms, floor drains need to have fast drainage and anti-clogging capabilities. This model, with its direct drainage structure and removable grate design, can quickly handle peak water usage while facilitating regular cleaning, ensuring the long-term smooth operation of the drainage system.

4. Changing and Shower Areas

In gyms, changing rooms, and other areas with concentrated showers, the Floor Drain With Deck Flange can withstand frequent foot traffic and continuous water flow. The stable structure and high drainage capacity help to quickly drain water from the floor, reducing the risk of slips and falls and improving overall safety in the space.

1. Regular Cleaning

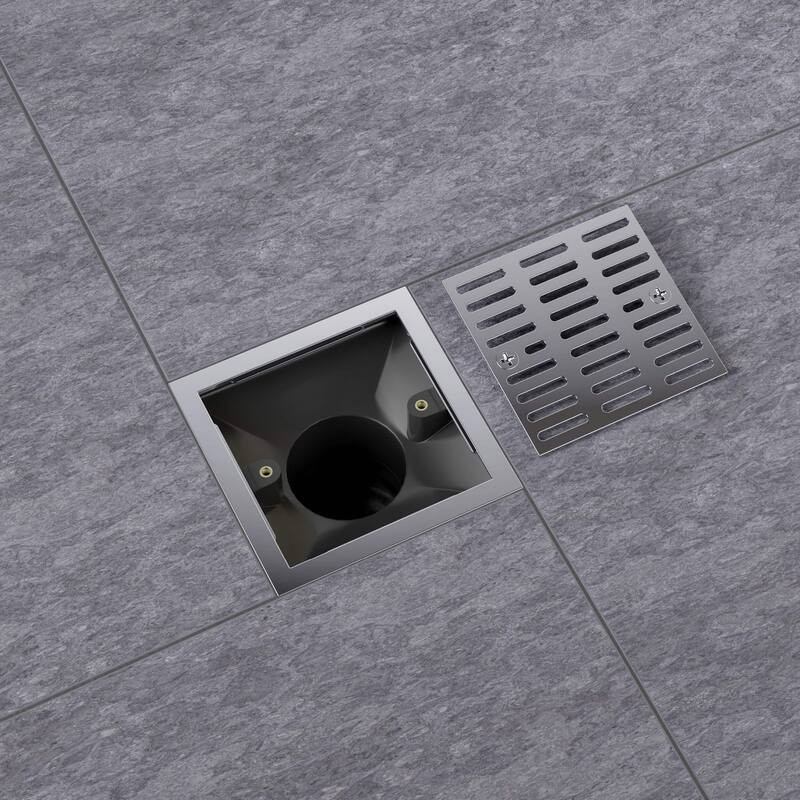

It is recommended to remove the floor drain grate every 2–4 weeks to clean away hair and debris from the surface and interior. Use a neutral detergent and a soft brush to clean the metal surface to maintain smooth drainage and prevent long-term accumulation from affecting water flow.

2. Avoid Corrosion

Avoid using cleaning agents containing strong acids or alkalis during daily cleaning to prevent damage to the surface treatment layer. For chrome-plated or brushed gold surfaces, using cleaning products with a near-neutral pH value can effectively extend the appearance's lifespan.

3. Check Connections

Check the threaded connection of the outlet every six months to ensure there is no loosening. If any displacement is found at the connection, re-tighten it promptly to ensure a stable and secure seal between the Floor Drain With Deck Flange and the pipe.

4. Prevent Impact

During construction or heavy object handling, avoid direct impact of hard objects on the floor drain surface. Although the grate has a certain load-bearing capacity, continuous strong impacts may affect the surface flatness, thus affecting the installation fit.

5. Surface Maintenance

For matte black or brushed surfaces, regularly wiping with a dry cloth can reduce water stains. Maintaining a dry and clean surface helps maintain the metallic texture and structural integrity, extending the overall service life.
